HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]

HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]

id0740a1803600

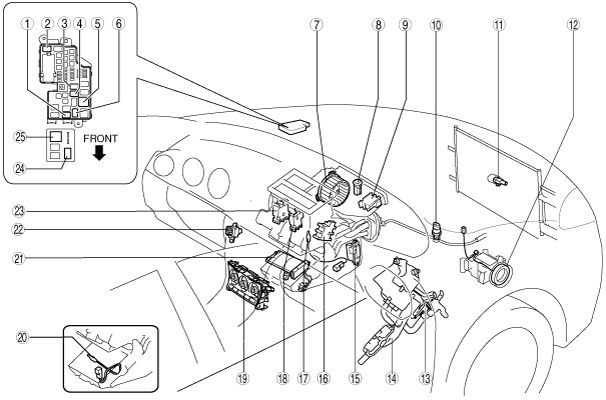

L.H.D.

am3zzw00007357

1

Rear window defroster relay

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

2

Heated windshield relay No.1 (Vehicles with heated windshield) (Z6, LF, L3 Turbo, MZ-CD 1.6 (Y6), MZR-CD 2.2)

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

3

Heated windshield relay No.2 (Vehicles with heated windshield) (MZR 2.0 DISI i-stop)

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

4

Heated windshield relay No.2 (Vehicles with heated windshield) (MZ-CD 1.6 (Y6), MZR-CD 2.2)

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

5

Blower relay

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

6

A/C relay

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

7

Blower motor

(See BLOWER MOTOR REMOVAL [FULL-AUTO AIR CONDITIONER].)

(See BLOWER MOTOR INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

8

Solar radiation sensor

(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

9

Air intake actuator

(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

10

Refrigerant pressure sensor (LF, MZR 2.0 DISI i-stop, L3 Turbo, MZ-CD 1.6 (Y6) (EURO5 emission level))

(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

Refrigerant pressure switch (except LF, MZR 2.0 DISI i-stop, L3 Turbo, MZ-CD 1.6 (Y6) (EURO5 emission level))

(See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER].)

11

Ambient temperature sensor

(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

12

Magnetic clutch

(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].)

(See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].)

(See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)

13

Fuel pump (MZR-CD 2.2)

(See FUEL PUMP (WATER HEATER SYSTEM) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See FUEL PUMP (WATER HEATER SYSTEM) INSPECTION [FULL-AUTO AIR CONDITIONER].)

14

Water heater unit (MZR-CD 2.2)

(See WATER HEATER UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See WATER HEATER SYSTEM INITIAL SETTING [FULL-AUTO AIR CONDITIONER].)

15

Power MOS FET

(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER].)

16

Passenger-side air mix actuator

(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

17

Evaporator temperature sensor

(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

18

Driver-side air mix actuator

(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

19

Climate control unit

(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)

20

Heater core temperature sensor (vehicles with i-stop)

(See HEATER CORE TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See HEATER CORE TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

21

PTC heater (MZ-CD 1.6 (Y6), MZR-CD 2.2)

(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION [FULL-AUTO AIR CONDITIONER].)

22

Cabin temperature sensor

(See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

23

Airflow mode actuator

(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

24

Heated windshield relay No.1 (Vehicles with heated windshield) (MZR 2.0 DISI i-stop)

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

25

Heated windshield relay No.2 (Vehicles with heated windshield) (LF, Z6, L3 Turbo)

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

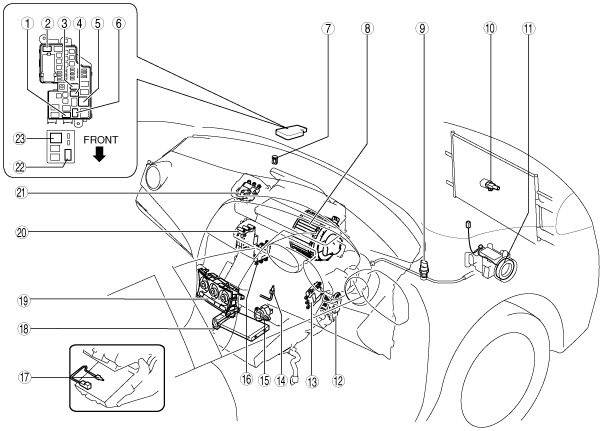

R.H.D.

am3zzw00007358

1

Rear window defroster relay

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

2

Heated windshield relay No.1 (Vehicles with heated windshield) (Z6, LF, L3 Turbo, MZ-CD 1.6 (Y6), MZR-CD 2.2)

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

3

Heated windshield relay No.2 (Vehicles with heated windshield) (MZR 2.0 DISI i-stop)

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

4

Heated windshield relay No.2 (Vehicles with heated windshield) (MZ-CD 1.6 (Y6), MZR-CD 2.2)

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

5

Blower relay

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

6

A/C relay

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

7

Solar radiation sensor

(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

8

Blower motor

(See BLOWER MOTOR REMOVAL [FULL-AUTO AIR CONDITIONER].)

(See BLOWER MOTOR INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

9

Refrigerant pressure sensor (L5, LF, MZR 2.0 DISI i-stop, L3 Turbo, MZ-CD 1.6 (Y6) (EURO5 emission level))

(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

Refrigerant pressure switch (except L5, LF, MZR 2.0 DISI i-stop, L3 Turbo, MZ-CD 1.6 (Y6) (EURO5 emission level))

(See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER].)

10

Ambient temperature sensor

(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

11

Magnetic clutch

(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].)

(See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].)

(See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)

12

Power MOS FET

(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION [FULL-AUTO AIR CONDITIONER].)

13

Driver-side air mix actuator

(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

14

Evaporator temperature sensor

(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

15

Cabin temperature sensor

(See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

16

Passenger-side air mix actuator

(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

17

Heater core temperature sensor (vehicles with i-stop)

(See HEATER CORE TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See HEATER CORE TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

18

PTC heater (MZ-CD 1.6 (Y6), MZR-CD 2.2)

(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See PTC (POSITIVE TEMPERATURE COEFFICIENT) HEATER INSPECTION [FULL-AUTO AIR CONDITIONER].)

19

Climate control unit

(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)

20

Airflow mode actuator

(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

21

Air intake actuator

(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

(See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

22

Heated windshield relay No.1 (Vehicles with heated windshield) (MZR 2.0 DISI i-stop)

(See RELAY LOCATION.)

(See RELAY INSPECTION.)

23

Heated windshield relay No.2 (Vehicles with heated windshield) (LF, Z6, L3 Turbo)

(See RELAY LOCATION.)

(See RELAY INSPECTION.)
