DTC B1008:11 [BCM]

id0902f5340000

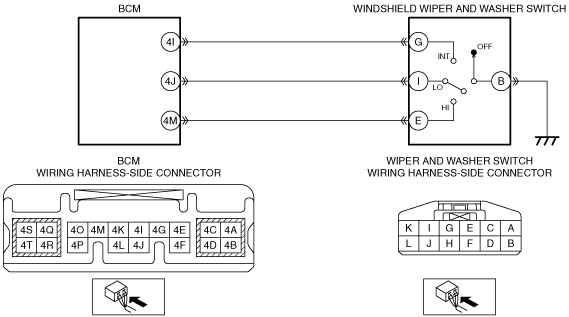

Vehicles Without Auto Wiper System

DESCRIPTION	Windshield wiper mode switch circuit malfunction
DETECTION CONDITION	• Short to ground in the windshield wiper mode switch circuit with the windshield wiper mode switch off.
POSSIBLE CAUSE	• Wiper and washer switch connector or terminals malfunction • BCM connector or terminals malfunction • Short to ground in wiring harness between the following terminals: ― Wiper and washer switch terminal G—BCM terminal 4I ― Wiper and washer switch terminal I—BCM terminal 4J ― Wiper and washer switch terminal E—BCM terminal 4M • Windshield wiper and washer switch malfunction • BCM malfunction

Diagnostic Procedure

STEP	INSPECTION		ACTION
1	CONFIRM BCM DTC • Clear the DTC using the M-MDS. (See CLEARING DTC [BCM].) • Perform the BCM DTC inspection using the M-MDS with the windshield wiper mode switch off. (See DTC INSPECTION [BCM].) • Is the same DTC present?	Yes	Go to the next step.
1		No	Go to Step 7.
2	INSPECT WIPER AND WASHER SWITCH CONNECTOR AND TERMINALS • Switch the ignition to off. • Disconnect the negative battery cable. • Disconnect the wiper and washer switch connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 6.
2		No	Go to the next step.
3	INSPECT BCM CONNECTOR AND TERMINALS • Disconnect the BCM connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 6.
3		No	Go to the next step.
4	INSPECT WINDSHIELD WIPER MODE SWITCH CIRCUIT FOR SHORT TO GROUND • Wiper and washer switch and BCM connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side) and body ground: ― Wiper and washer switch terminal G ― Wiper and washer switch terminal I ― Wiper and washer switch terminal E • Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to Step 6.
4		No	Go to the next step.
5	INSPECT WINDSHIELD WIPER AND WASHER SWITCH • Inspect the windshield wiper and washer switch. (See WINDSHIELD WIPER AND WASHER SWITCH INSPECTION.) • Is there any malfunction?	Yes	Replace the wiper and washer switch, then go to the next step. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)
5		No	Go to the next step.
6	VERIFY TROUBLESHOOTING COMPLETED • Make sure to reconnect the disconnected connectors. • Reconnect the negative battery cable. • Clear the DTC using the M-MDS. (See CLEARING DTC [BCM].) • Perform the BCM DTC inspection using the M-MDS with the windshield wiper mode switch off. (See DTC INSPECTION [BCM].) • Is the same DTC present?	Yes	Replace the BCM, then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [L.H.D.].) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [R.H.D.].)
6		No	Go to the next step.
7	VERIFY THAT NO OTHER DTCs ARE PRESENT • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [BCM].)
7		No	DTC troubleshooting completed.

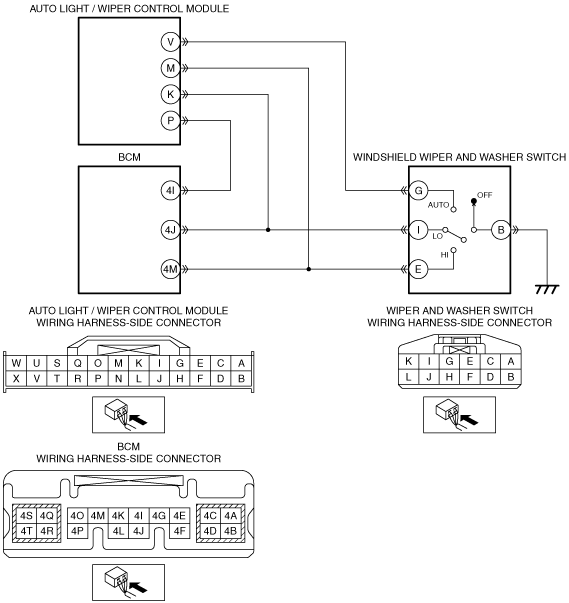

Vehicles With Auto Wiper System

DESCRIPTION

Windshield wiper mode switch circuit malfunction

DETECTION CONDITION

•  Short to ground in the windshield wiper mode switch circuit with the windshield wiper mode switch off.

POSSIBLE CAUSE

•  Wiper and washer switch connector or terminals malfunction

•  Auto light/wiper control module connector or terminals malfunction

•  Short to ground in wiring harness between the following terminals:

―  Wiper and washer switch terminal G—Auto light/wiper control module terminal V

•  BCM connector or terminals malfunction

•  Short to ground in wiring harness between the following terminals:

―  Wiper and washer switch terminal I—BCM terminal 4J or auto light/wiper control module terminal K

―  Wiper and washer switch terminal E—BCM terminal 4M or auto light/wiper control module terminal M

―  Auto light/wiper control module terminal P—BCM terminal 4I

•  Windshield wiper and washer switch malfunction

•  Auto light/wiper control module malfunction

•  BCM malfunction

DESCRIPTION	Windshield wiper mode switch circuit malfunction
DETECTION CONDITION	• Short to ground in the windshield wiper mode switch circuit with the windshield wiper mode switch off.
POSSIBLE CAUSE	• Wiper and washer switch connector or terminals malfunction • Auto light/wiper control module connector or terminals malfunction • Short to ground in wiring harness between the following terminals: ― Wiper and washer switch terminal G—Auto light/wiper control module terminal V • BCM connector or terminals malfunction • Short to ground in wiring harness between the following terminals: ― Wiper and washer switch terminal I—BCM terminal 4J or auto light/wiper control module terminal K ― Wiper and washer switch terminal E—BCM terminal 4M or auto light/wiper control module terminal M ― Auto light/wiper control module terminal P—BCM terminal 4I • Windshield wiper and washer switch malfunction • Auto light/wiper control module malfunction • BCM malfunction

Diagnostic Procedure

STEP	INSPECTION		ACTION
1	CONFIRM BCM DTC • Clear the DTC using the M-MDS. (See CLEARING DTC [BCM].) • Perform the BCM DTC inspection using the M-MDS with the windshield wiper mode switch off. (See DTC INSPECTION [BCM].) • Is the same DTC present?	Yes	Go to the next step.
1		No	Go to Step 10.
2	INSPECT WIPER AND WASHER SWITCH CONNECTOR AND TERMINALS • Switch the ignition to off. • Disconnect the negative battery cable. • Disconnect the wiper and washer switch connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 9.
2		No	Go to the next step.
3	INSPECT AUTO LIGHT/WIPER CONTROL MODULE CONNECTOR AND TERMINALS • Disconnect the auto light/wiper control module connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 9.
3		No	Go to the next step.
4	INSPECT WINDSHIELD WIPER AUTO SWITCH CIRCUIT FOR SHORT TO GROUND • Wiper and washer switch and auto light/wiper control module connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side) and body ground: ― Wiper and washer switch terminal G • Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to Step 9.
4		No	Go to the next step.
5	INSPECT BCM CONNECTOR AND TERMINALS • Disconnect the BCM connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 9.
5		No	Go to the next step.
6	INSPECT WINDSHIELD WIPER MODE SWITCH CIRCUIT FOR SHORT TO GROUND • Wiper and washer switch, auto light/wiper control module and BCM connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side) and body ground: ― Wiper and washer switch terminal I ― Wiper and washer switch terminal E ― Auto light/wiper control module terminal P • Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to Step 9.
6		No	Go to the next step.
7	INSPECT WINDSHIELD WIPER AND WASHER SWITCH • Inspect the windshield wiper and washer switch. (See WINDSHIELD WIPER AND WASHER SWITCH INSPECTION.) • Is there any malfunction?	Yes	Replace the wiper and washer switch, then go to Step 9. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)
7		No	Go to the next step.
8	INSPECT AUTO LIGHT/WIPER CONTROL MODULE • Reconnect the wiper and washer switch, auto light/wiper control module and BCM connectors. • Reconnect the negative battery cable. • Measure the voltage at the following terminals (wiring harness-side): ― Auto light/wiper control module terminal V ― Auto light/wiper control module terminal M ― Auto light/wiper control module terminal K ― Auto light/wiper control module terminal P • Is the voltage normal? (See AUTO LIGHT/WIPER CONTROL MODULE INSPECTION.)	Yes	Go to the next step.
8		No	Replace the auto light/wiper control module, then go to the next step. (See AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION.)
9	VERIFY TROUBLESHOOTING COMPLETED • Make sure to reconnect the disconnected connectors. • Reconnect the negative battery cable. • Clear the DTC using the M-MDS. (See CLEARING DTC [BCM].) • Perform the BCM DTC inspection using the M-MDS with the windshield wiper mode switch off. (See DTC INSPECTION [BCM].) • Is the same DTC present?	Yes	Replace the BCM, then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [L.H.D.].) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [R.H.D.].)
9		No	Go to the next step.
10	VERIFY THAT NO OTHER DTCs ARE PRESENT • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [BCM].)
10		No	DTC troubleshooting completed.
