FOREWORD [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]

id0903h3844500

Note

•  The car-navigation unit indicated in this section refers to the car-navigation unit with an integrated multi information display.

Troubleshooting Index

No.	Malfunction symptom
1	NO.1 CAR-NAVIGATION SYSTEM DOES NOT START OPERATION (DISPLAY CHANGES TO BACK.) [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]
2	NO.2 SYSTEM DOES NOT CONTROL CAR-NAVIGATION SYSTEM BY STEERING SWITCH [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]
3	NO.3 SYSTEM DOES NOT LOAD MAP DATA [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]
4	NO.4 NO SOUND FROM AUDIO SYSTEM [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]
5	NO.5 VEHICLE POSITION DEVIATES FROM THE ROUTE MAP [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]
6	NO.6 NO VOICE NAVIGATION [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]
7	NO.7 DISPLAY SCREEN DOES NOT CHANGE TO THE NIGHT MODE (FRONT AND REAR COMBINATION LIGHTS OPERATE NORMALLY.) [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]

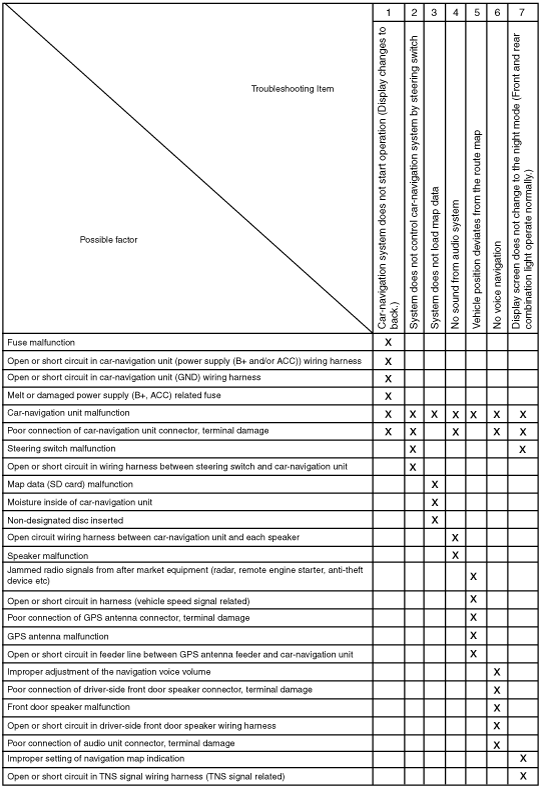

Quick diagnostic chart

am3zzw00009866
