LIFTGATE REMOVAL/INSTALLATION

id091100521200

Warning

•  When removing the stay damper, serious injury may occur if the stay damper is removed without supporting the liftgate. Always perform the procedure with at least another person.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(3)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(4)  Lower anchor installation bolts on the rear seat belt (See REAR SEAT BELT REMOVAL/INSTALLATION.)

(5)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(7)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(8)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(9)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(10)  Rear assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

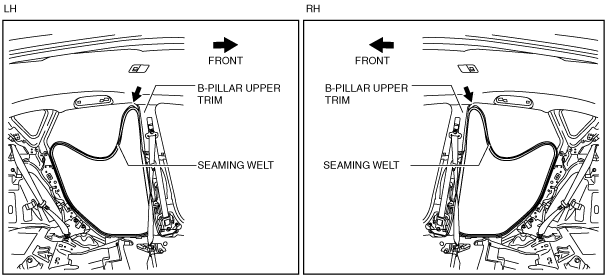

3.  Peel back the seaming welt to the point indicated by the arrow in the figure.

am3uuw00002639

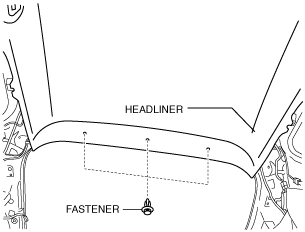

4.  Remove the fasteners.

am3uuw00002640

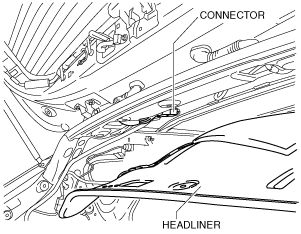

5.  Disconnect the connector while partially peeling back the headliner.

Note

•  Be careful not to leave a fold-seam.

am3uuw00002641

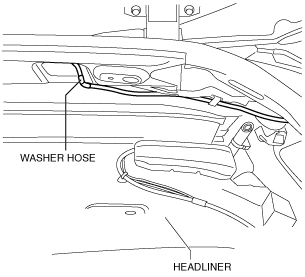

6.  Disconnect the rear washer hose while partially peeling back the headliner.

Note

•  Be careful not to leave a fold-seam.

am3uuw00003919

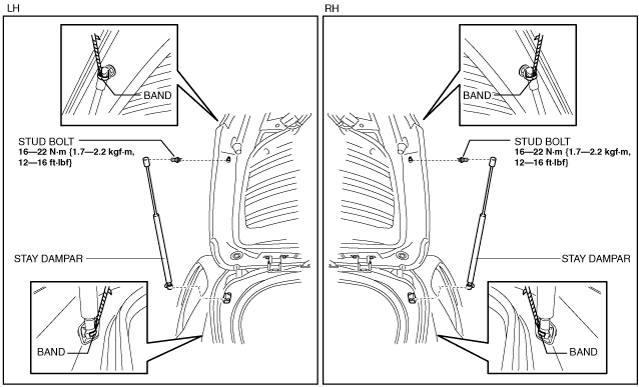

7.  Remove the stay damper band using a tape-wrapped flathead screwdriver.

am3uuw00002642

8.  Remove the stay damper.

9.  Remove the stud bolts.

10.  Remove the bolts.

am3uuw00002643

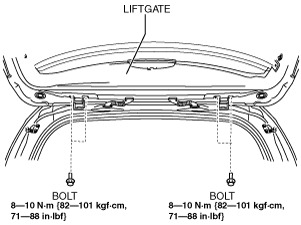

11.  Remove the liftgate.

12.  Remove the bolts.

am3uuw00002644

13.  Remove the bracket.

14.  Install in the reverse order of removal.

15.  Adjust the liftgate. (See LIFTGATE ADJUSTMENT.)
