LIFTGATE LATCH SWITCH INSPECTION

id091400512200

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(4)  Liftgate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

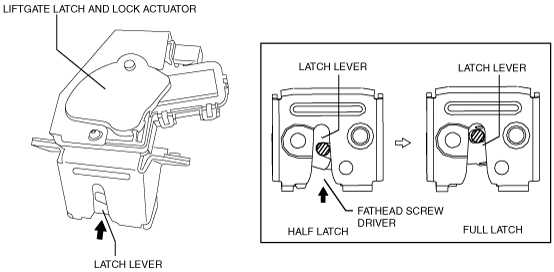

3.  Press the latch in using a flathead screwdriver to inspect the latch lever condition.

am3uuw00004137

4.  Verify that the continuity is as indicated in the table.

am3uuw00004138

•  If not as indicated in the table, replace the liftgate latch and lock actuator

am6zzw00002612
