LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION


id091400516100

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
(4)  Liftgate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

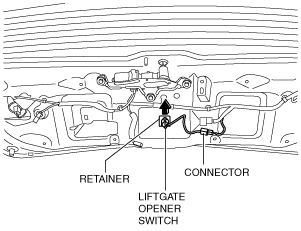

am3uuw00004363

4.  Pull out the retainer in the direction of the arrow.

5.  Remove the liftgate opener switch.

am3zzw00006175

6.  Install in the reverse order of removal.
