WIPER/WASHER SYSTEM LOCATION INDEX


id091900800100

L.H.D.

am3zzw00007710

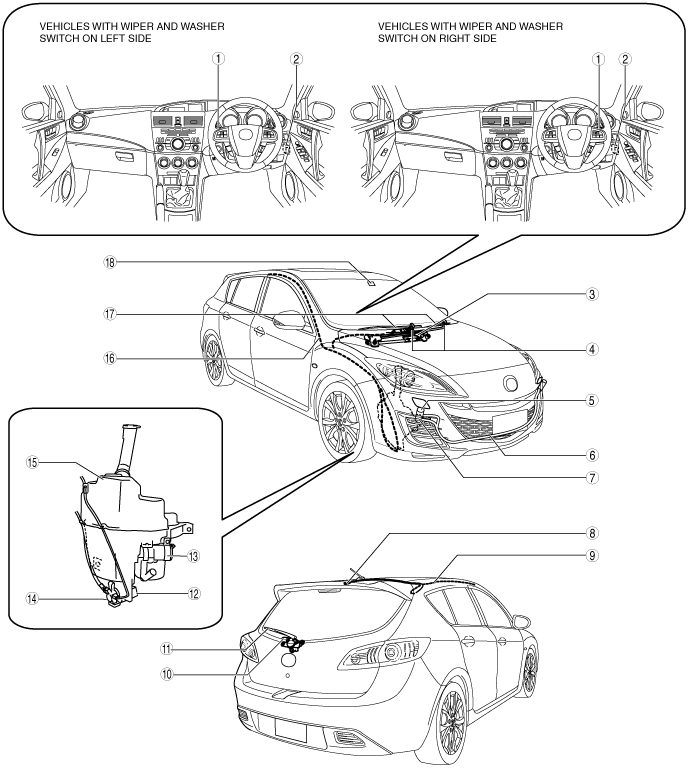

R.H.D.

am3zzw00007673

1
Wiper and washer switch
2
Auto light/wiper control module
3
Windshield wiper motor
4
Windshield washer nozzle
5
Headlight cleaner nozzle
6
Headlight cleaner hose
7
Headlight cleaner actuator
8
Rear washer nozzle
9
Rear washer hose
10
Rear wiper motor
11
Rear wiper arm and blade
12
Washer fluid-level sensor
13
Headlight cleaner motor
14
Washer motor
15
Washer tank
16
Windshield washer hose
17
Windshield wiper arm and blade
18
Rain sensor
