AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (ZY, Z6) [FN4A-EL]

id0517a1807000

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [ZJ, ZY, Z6].)

2.  Disconnect the negative battery cable.

3.  Remove the battery, battery tray and battery box. (See BATTERY REMOVAL/INSTALLATION [ZJ, ZY, Z6].)

4.  Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZJ, ZY, Z6].)

5.  Remove the EGR pipe. (ZY) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [ZJ, ZY, Z6].)

6.  Remove the front tires and splash shield.

7.  Remove the under cover.

8.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FN4A-EL].)

Warning
•  Improperly jacking a transaxle is dangerous. It can slip off the jack and may cause serious injury.
Caution
•  To prevent the torque converter and transaxle from separating, remove the transaxle without tilting it toward the torque converter.

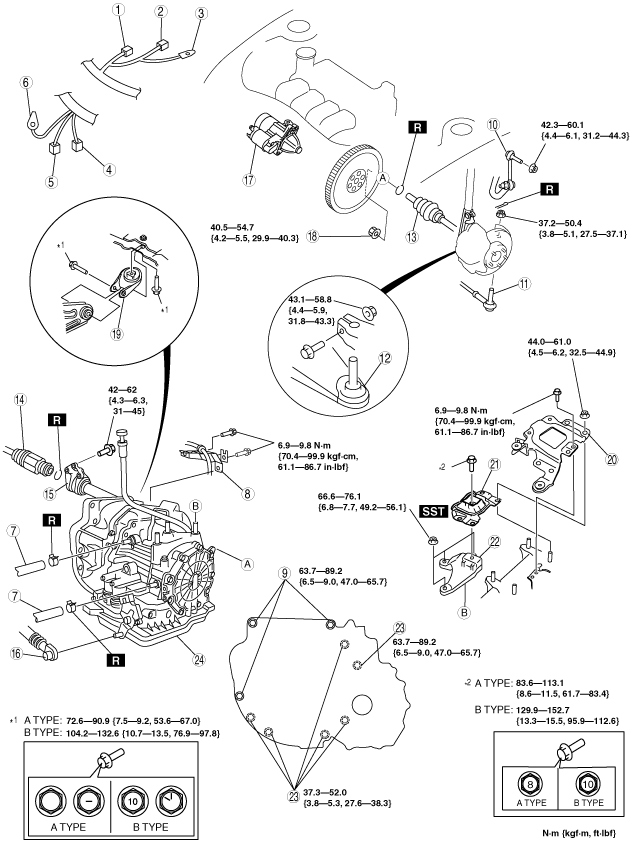

9.  Remove in the order indicated in the table.

10.  Install in the reverse order of removal.

11.  Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FN4A-EL].)

12.  Perform the mechanical system test. (See MECHANICAL SYSTEM TEST [FN4A-EL].) (See ROAD TEST [FN4A-EL].)

Service item

Test item

Line pressure test

Stall test

Time lag test

Road test
ATX replacement
X



ATX overhaul
X
X
X
X
Torque converter replacement
X
X


Oil pump replacement
X



Clutch system replacement
X

X
X

X  :Test to be performed after the service work

am3zzw00005022

1
Input/turbine speed sensor connector
2
VSS connector
3
GND wiring harness
4
Transaxle connector
5
TR switch connector
6
GND wiring harness
7
Oil hose
8
Selector cable bracket
9
Transaxle mounting bolt (upper side)
10
Stabilizer control link
11
Tie-rod end ball joint
(See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)
12
Lower arm ball joint
13
Drive shaft
(See DRIVE SHAFT REMOVAL/INSTALLATION.)
14
Drive shaft
(See DRIVE SHAFT REMOVAL/INSTALLATION.)
15
Joint shaft
(See JOINT SHAFT REMOVAL/INSTALLATION [ZJ, ZY, Z6, LF, L3, L3 Turbo, MZR-CD (RF Turbo)].)
16
Selector cable
17
Starter
(See STARTER REMOVAL/INSTALLATION [ZJ, ZY, Z6].)
18
Torque converter installation nuts
(See Torque Converter Nuts Removal Note.)
(See Torque Converter Nuts Installation Note.)
19
No.1 engine mount rubber
(See No.1 Engine Mount and No.4 Engine Mount Installation Note.)
20
Battery tray bracket
21
No.4 engine mount rubber
(See No.4 Engine Mount Removal Note.)
(See No.1 Engine Mount and No.4 Engine Mount Installation Note.)
22
No.4 engine mount bracket
(See No.4 Engine Mount Removal Note.)
(See No.1 Engine Mount and No.4 Engine Mount Installation Note.)
23
Transaxle mounting bolt (lower side)
24
Transaxle
(See Transaxle Removal Note.)
(See Transaxle Installation Note.)


Torque Converter Nuts Removal Note

1.  Using the flathead screwdriver, lock the drive plate.

2.  Remove the torque converter nuts from the starter installation hole.

am3zzw00005023


No.4 Engine Mount Removal Note

1.  Using the bolts part number 99794 1025 or M10× 1.25, length 25 mm {0.98 in} to install the SST to the position as shown in the figure.

am3zzw00005024

Caution
•  When attaching the SST in the engine rear side, install a suitable nut between the engine and the SST.
am3zzw00005025
Tightening torque
38—51 N·m {3.9—5.2 kgf·m, 29—37 ft·lbf}

2.  To install the front shaft (RH) of the SST (49 C017 5A0), remove the clip shown in the figure.

am3zzw00005026

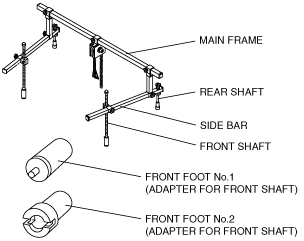

3.  Install the SST using the following procedure.

Caution
•  Refer to the SST instruction manual for the basic handing procedure.
am3zzw00005027
(1)  Install the right rear shaft of the SST to the bolt of the right shock absorber as shown in the figure.
am3zzw00005028
(2)  Install the left rear shaft of the SST to the bolt of the left shock absorber (Identical position to right side).
(3)  Install front foot No.2 to the left/right front shaft of the SST, then align the groove of the front shaft of the SST with the folded up part of the vehicle as shown in the figure.
am3zzw00005029
(4)  Adjust the positions of the SST side bars so that they are the same height (left and right) and horizontal.
(5)  Make sure each joint is securely tightened.

4.  Support the engine using the SST.

am3zzw00005030

5.  Remove the battery tray bracket, No.4 engine mount rubber and bracket.


Transaxle Removal Note

1.  Adjust the SST and lean the engine toward the transaxle.

am3zzw00005030

2.  Support the transaxle on a jack.

3.  Remove the transaxle mounting bolts.

4.  Remove the transaxle.

am3zzw00005031


Transaxle Installation Note

1.  Set the transaxle on a jack and lift it.

2.  Install the transaxle mounting bolts.

am3zzw00005032

Tightening torque
A: 63.7—89.2 N·m {6.5—9.0 kgf·m, 47.0—65.7 ft·lbf}
B: 37.3—52.0 N·m {3.8—5.3 kgf·m, 27.6—38.3 ft·lbf}


No.1 Engine Mount and No.4 Engine Mount Installation Note

1.  Install the No.4 engine mount bracket on the transaxle case and tighten nuts.

am3zzw00005033

2.  Install the No.1 engine mount rubber to the crossmember and temporarily tighten bolts.

am3zzw00005020

3.  Place the No.4 engine mount rubber with the body stud bolts passing through the holes and tighten the bolt as shown in the figure.

Caution
•  If the engine mount rubber installation bolt is type A, replace it with type B bolt and tighten.
am3zzw00004620

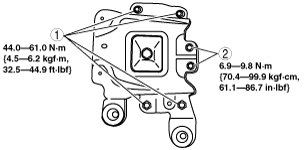

4.  Place the battery tray bracket on the No.4 engine mount rubber with body stud bolts passing through the holes and tighten bolts and nuts in the order as shown in the figure.

am3zzw00005034

5.  Remove the SSTs.

6.  Install the clip as shown in the figure.

am3zzw00005026

7.  Fully tighten the bolts

am3zzw00005035

Caution
•  Tighten the bolts in the order shown in the figure to prevent abnormal noise and vibration after assembly.
•  Tighten the bolts while being careful of their length to prevent interference between the steering gear housing and bolt.
Bolt length (measured from below the head)
Front crossmember side: 62 mm {2.441 in}
No.1 engine mount bracket side: 65 mm {2.559 in}
Tightening torque
A type: 72.6—90.9 N·m {7.5—9.2 kgf·m, 53.6—67.0 ft·lbf}
B type: 104.2—132.6 N·m {10.7—13.5 kgf·m, 76.9—97.8 ft·lbf}


Torque Converter Nuts Installation Note

1.  Using the flathead screwdriver, lock the drive plate.

2.  Hold the crankshaft pulley to prevent the drive plate from rotating.

Caution
•  Loosely and equally tighten the torque converter nuts, then further tighten them to the specified tightening torque.

3.  Tighten the torque converter mounting nuts.

am3zzw00005023

Tightening torque
40.5—54.7 N·m {4.2—5.5 kgf·m, 29.9—40.3 ft·lbf}
