CLIMATE CONTROL UNIT REMOVAL[MANUAL AIR CONDITIONER]
id0740a2801800
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Ashtray panel
-
- (2) Detach the bonnet release lever from the lower panel. (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION[L.H.D.].) (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION[R.H.D.].)
-
- (3) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (4) Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (5) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
-
- (6) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (7) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (8) PJB and PJB bracket (See PASSENGER JUNCTION BOX (PJB) REMOVAL/INSTALLATION.)
-
- (9) Console (See CONSOLE REMOVAL/INSTALLATION.)
-
- (10) Driver-side air bag module (R.H.D., MTX) (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
-
- (11) Column cover (R.H.D., MTX) (See COLUMN COVER REMOVAL/INSTALLATION.)
-
- (12) Meter hood (R.H.D., MTX) (See METER HOOD REMOVAL/INSTALLATION.)
-
- (13) Instrument cluster (R.H.D., MTX) (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
-
- (14) Steering shaft (R.H.D., MTX) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
-
3. Detach the PJB wiring harness clamp from the dashboard.
4. Remove the center panel unit. (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)
5. Remove the air intake wire (Australian, General (L.H.D. R.H.D.) specs.), air mix wire and airflow mode wire with wire clamp from the A/C unit.
-
MTX vehicles
-
1. Remove the wire clamp screws from the A/C unit using a ratchet offset screwdriver (commercially available tool) and disconnect the air mix wire with the wire clamp still installed.
2. Remove the wire clamp screws from the A/C unit and disconnect the airflow mode wire from the A/C unit with the wire clamp still installed.
-
ATX vehicles
-
1. Remove the wire clamp screws from the A/C unit and disconnect the air mix, airflow mode wire from the A/C unit with the wire clamp still installed.

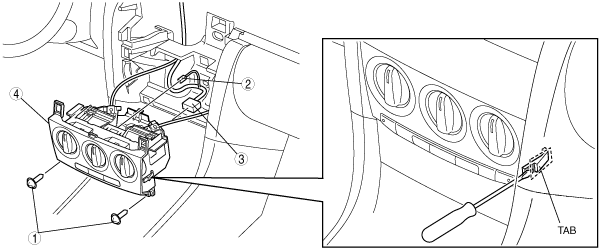

6. Release the left and right tabs and remove in the order indicated in the table.
European (L.H.D. U.K.) specs.
Australian, General (L.H.D. R.H.D.) specs.
|
1
|
Screw
|
|
2
|
Fan switch connector
|
|
3
|
Climate control unit connector
|
|
4
|
Climate control unit
|
