FUEL-FILLER LID OPENER REMOVAL/INSTALLATION[R.H.D.]

id0914008047d2

1.  To remove the fuel-filler lid opener, remove the following procedure:

•  5HB

―  Remove the hole cover on the trunk side trim. (RH)

am3zzw00003643

•  4SD

―  Remove the trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

―  Slightly bend back the trunk side trim. (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

2.  To remove the fuel-filler lid opener lever, remove the following part:.

(1)  Front scuff plate (driver’s side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

3.  When removing the fuel-filler lid opener cable, perform the following procedure:

4.  Remove the following parts:

(1)  Rear scuff plate (driver’s side) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)

(3)  Tire house trim (driver’s side) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4)  B-pillar lower trim (driver’s side) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(5)  Front seat (driver’s side) (See FRONT SEAT REMOVAL/INSTALLATION.)

5.  Partially peel back the floor covering so that the fuel-filler lid opener cable can be removed.

6.  Remove the fuel-filler lid opener cable from clips A.

7.  Remove in the order indicated in the table.

8.  Install in the reverse order of removal.

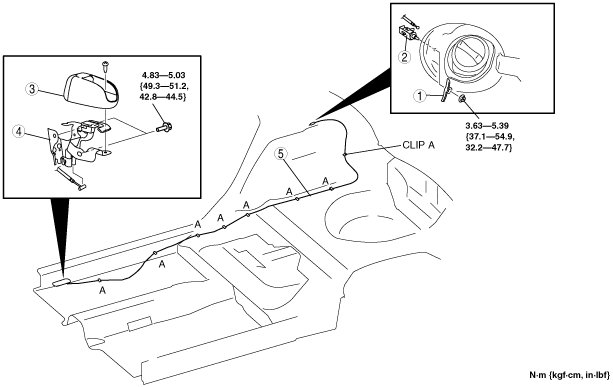

am3zzw00003644

1	Lift spring
2	Fuel-filler lid opener
3	Fuel-filler lid opener lever cover
4	Fuel-filler lid opener lever
5	Fuel-filler lid opener cable
