FRONT DRAIN HOSE REMOVAL
id091500801300
1. Remove the following parts:
- (1) Console (4SD) (See CONSOLE REMOVAL/INSTALLATION.)
-
- (2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (3) Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (4) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (5) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (6) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (7) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
-
- (8) Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)
-
- (9) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
-
- (10) Trunk side upper trim (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
-
- (11) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
-
- (12) Map light (See MAP LIGHT REMOVAL/INSTALLATION.)
-
- (13) Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION.)
-
- (14) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
-
- (15) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
-
- (16) Headliner (See HEADLINER REMOVAL/INSTALLATION.)
-
- (17) Front door (See FRONT DOOR REMOVAL/INSTALLATION.)
-
- (18) Dashboard (See DASHBOARD REMOVAL/INSTALLATION.)
-
2. Disconnect the front drain hose from the sunroof frame.

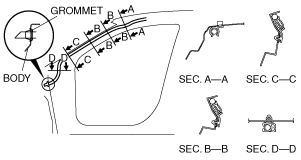

3. Remove the front drain hose from the clips.
4. Pull the front drain hose into the vehicle interior and remove the front drain hose.
