EMISSION SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0116ze110100


Purpose, Outline

•  A single-nano catalyst has been adopted for the under-floor, three-way catalyst to improve emission gas purification efficiency.

Structural View

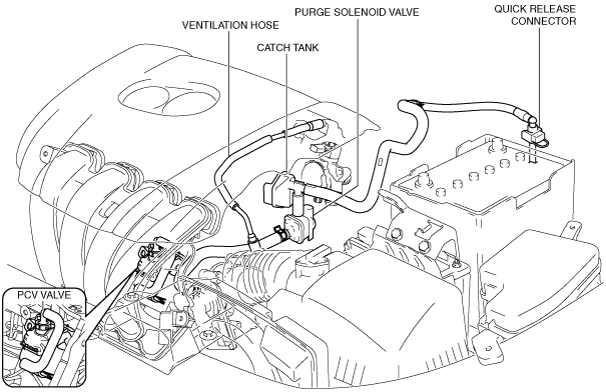

Engine compartment side

am3uun00003182


Exhaust system side

am6xun00000999


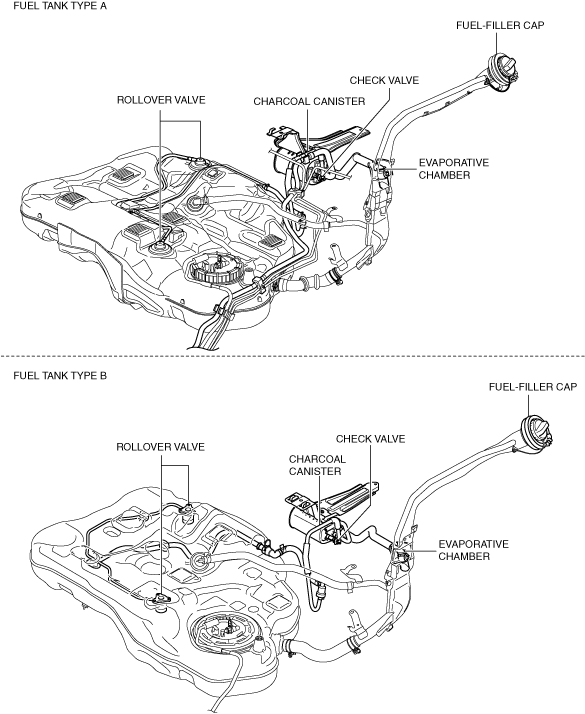

Fuel tank side

am3zzn00006537


System Diagram

am3zzw00018680

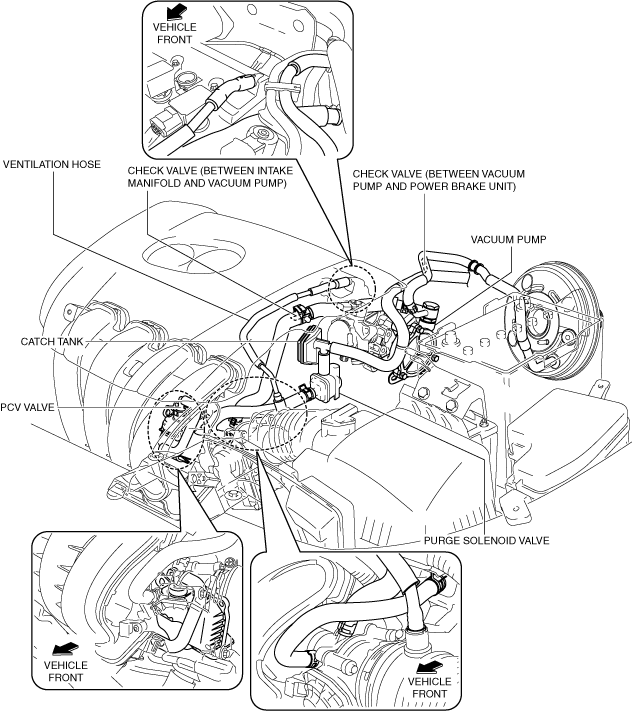

Vacuum Hose Routing Diagram

L.H.D.

am3uun00003188

R.H.D.

am3zzn00003669

Structure

•  The emission system consists of the following parts:

Part/System name

Reference
Exhaust gas purification system
(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Catalytic converter
(See CATALYTIC CONVERTER [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Positive crankcase ventilation system
(See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
PCV valve
(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Evaporative emission control system
(See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

Purge solenoid valve
(See PURGE SOLENOID VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Catch tank
(See CATCH TANK [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Charcoal canister
(See CHARCOAL CANISTER [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Check valve
(See CHECK VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Rollover valve
(See ROLLOVER VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Fuel-filler cap
(See FUEL-FILLER CAP [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Evaporative chamber
(See EVAPORATIVE CHAMBER [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
Quick release connector (emission system)
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)


Specification

Item

Specification
Catalyst form
WU-TWC (monolith)
TWC (monolith)
EVAP control system
Charcoal canister type
PCV system
Closed type
