FRONT BUMPER DISASSEMBLY/ASSEMBLY

id091000800400

1.  Remove the following parts:

(1)  Front fog light (With front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)

(2)  Front turn light (See FRONT TURN LIGHT REMOVAL/INSTALLATION.)

(3)  Front turn light short cord (See FRONT TURN LIGHT SHORT CORD REMOVAL/INSTALLATION.)

(4)  Front ultrasonic sensor (With front ultrasonic sensor) (See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION.)

(5)  Headlight cleaner hose (With headlight cleaner system) (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION.)

(6)  Headlight cleaner cover (With headlight cleaner system) (See HEADLIGHT CLEANER COVER REMOVAL/INSTALLATION.)

(7)  Headlight cleaner actuator (With headlight cleaner system) (See HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION.)

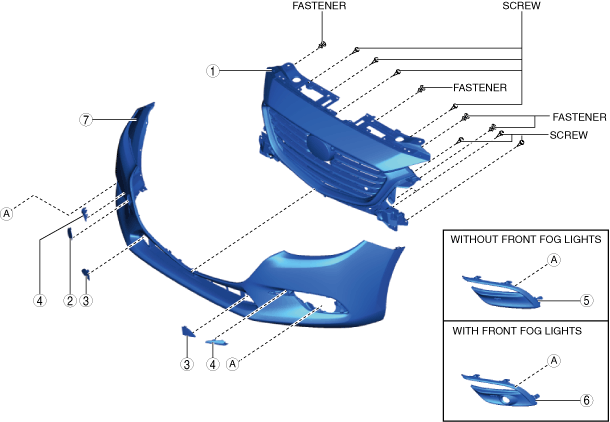

2.  Disassemble in the order indicated in the table.

am3zzw00018750

1	Radiator grille (See RADIATOR GRILLE REMOVAL/INSTALLATION.)
2	Towing hook cover
3	Front bumper cover
4	Hole cover
5	Hole cover (Without front fog lights)
6	Front fog light bezel (With front fog lights)
7	Front bumper face

3.  Assemble in the reverse order of disassembly.

4.  If a front fog light is removed from the front bumper, perform the front fog light aiming. (With front fog lights) (See FRONT FOG LIGHT AIMING.)
