WINDSHIELD REMOVAL

id091200000500

Reusing Windshield

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the following parts:

(1)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(3)  Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

(4)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(5)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(6)  Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(7)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(8)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)

3.  Disconnect the rain sensor connector. (with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

4.  Disconnect the forward sensing camera (FSC) connector. (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)

5.  Disconnect the auto-dimming mirror connector. (with auto-dimming mirror) (See AUTO-DIMMING MIRROR REMOVAL/INSTALLATION.)

6.  Set the headliner out of the way.

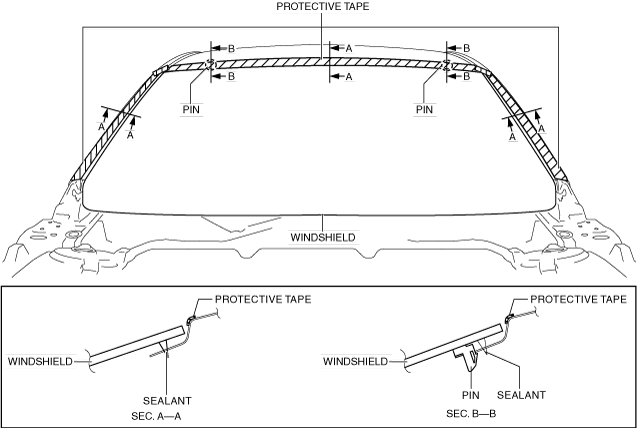

7.  Apply protective tape along the edge of the body.

Note

•  Overlap and adhere the protective tape to the corners to prevent damage.

am3zzw00020580

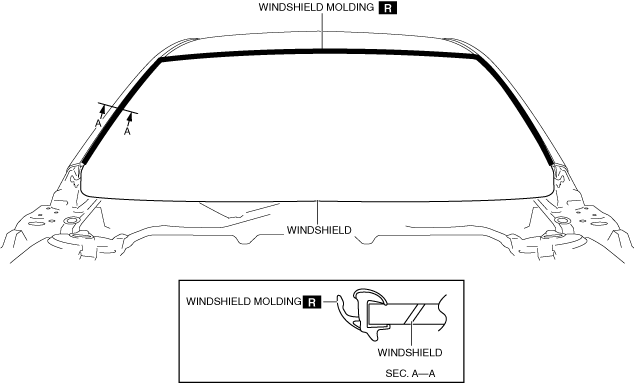

8.  Remove the windshield molding by pulling it outward.

Note

•  If the windshield molding is difficult to remove, warm the windshield molding using a hot air blower.

am3zzw00020581

9.  Cut the tip of the piano wire diagonally.

am3uuw00011407

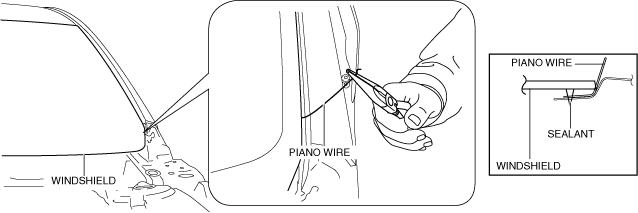

10.  Pass the piano wire through from the cabin side.

am3zzw00020582

11.  Wind each end of piano wire around a bar.

Note

•  Use a long sawing action to spread the work over the whole length of piano wire to prevent it from breaking due to localized heating.

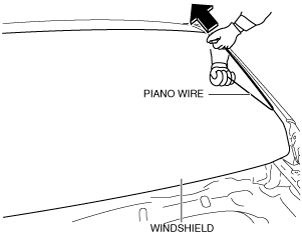

12.  Secure the piano wire on the cabin side, and pull the wire on the other side (vehicle exterior) in the direction of the arrow shown in the figure to cut the windshield sealant.

am3zzw00017302

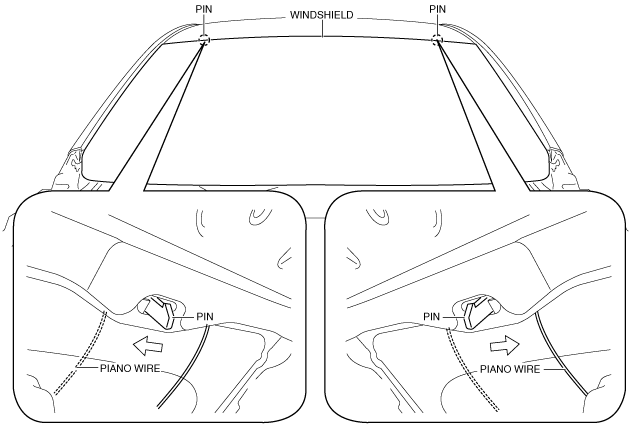

13.  When reaching the pin, pull the piano wire out to go around the pin, then pass the piano wire through from the cabin side again.

am3zzw00017303

14.  Secure one end of piano wire, and while pulling the other end, cut the sealant around the windshield.

15.  Pinch the pin from the inside of the vehicle and detach it.

16.  Remove the windshield.

17.  If the pin is damaged, remove the pin.

Note

•  Before removing the pin from the windshield glass, place an alignment mark on the windshield.

Not Reusing Windshield

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the following parts:

(1)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(3)  Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

(4)  Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)

(5)  Rain sensor (with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

(6)  Auto-dimming mirror (with auto-dimming mirror) (See AUTO-DIMMING MIRROR REMOVAL/INSTALLATION.)

(7)  Rearview mirror (without auto-dimming mirror) (See REARVIEW MIRROR REMOVAL/INSTALLATION.)

(8)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(9)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(10)  Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(11)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(12)  Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION.)

3.  Set the headliner out of the way.

4.  Apply protective tape along the edge of the body.

Note

•  Overlap and adhere the protective tape to the corners to prevent damage.

am3zzw00020580

5.  Remove the windshield molding by pulling it outward.

Note

•  If the windshield molding is difficult to remove, warm the windshield molding using a hot air blower.

am3zzw00020581

6.  Cut out the sealant all around the glass using a sealant remover.

Note

•  If it is difficult to cut sealant, use piano wire and follow the procedure under “Reusing Windshield”.

ac5wzw00001324

7.  Remove the windshield.
