i-stop CONTROL

id111100000100

Outline

• Modules and sensors related to i-stop control are indicated as follows.

Item

Reference

SKYACTIV-G 1.5,

SKYACTIV-G 2.0

Without i-ELOOP

ATX

(See SKYACTIV-G 1.5, SKYACTIV-G 2.0.)

MTX

With i-ELOOP

ATX

MTX

SKYACTIV-D 1.5

ATX

(See SKYACTIV-D 1.5.)

MTX

SKYACTIV-D 2.2

Without i-ELOOP

ATX

(See SKYACTIV-D 2.2.)

MTX

With i-ELOOP

ATX

MTX

Item	Reference
SKYACTIV-G 1.5, SKYACTIV-G 2.0	Without i-ELOOP	ATX	(See SKYACTIV-G 1.5, SKYACTIV-G 2.0.)
MTX
With i-ELOOP	ATX
MTX
SKYACTIV-D 1.5	ATX	(See SKYACTIV-D 1.5.)
MTX
SKYACTIV-D 2.2	Without i-ELOOP	ATX	(See SKYACTIV-D 2.2.)
MTX
With i-ELOOP	ATX
MTX

• For i-stop control details, refer to the CONTROL SYSTEM. (See i-stop CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop CONTROL [SKYACTIV-D 1.5].) (See i-stop CONTROL [SKYACTIV-D 2.2].)

SKYACTIV-G 1.5, SKYACTIV-G 2.0

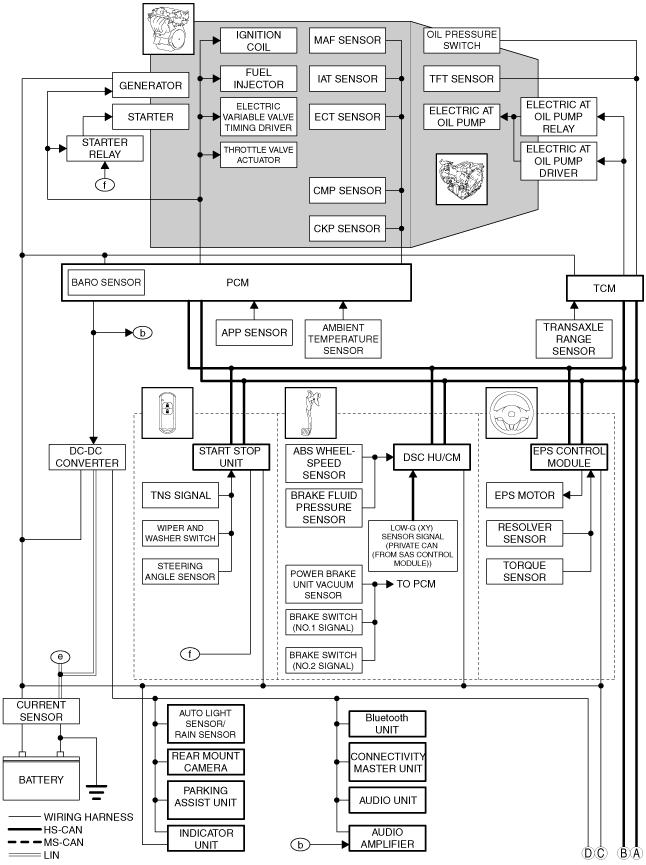

Without i-ELOOP (ATX)

am3zzn00006364

am3zzn00005119

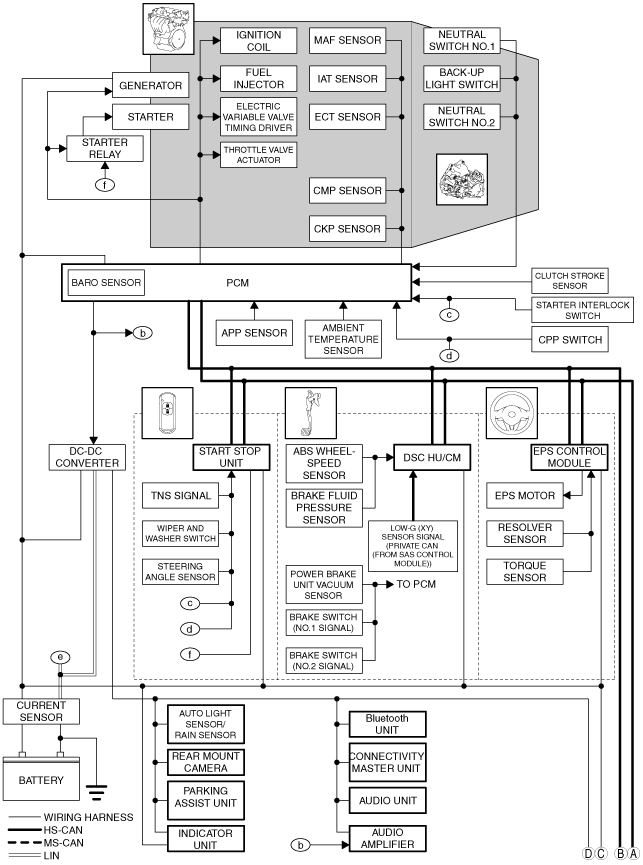

Without i-ELOOP (MTX)

am3zzn00006365

am3zzn00005119

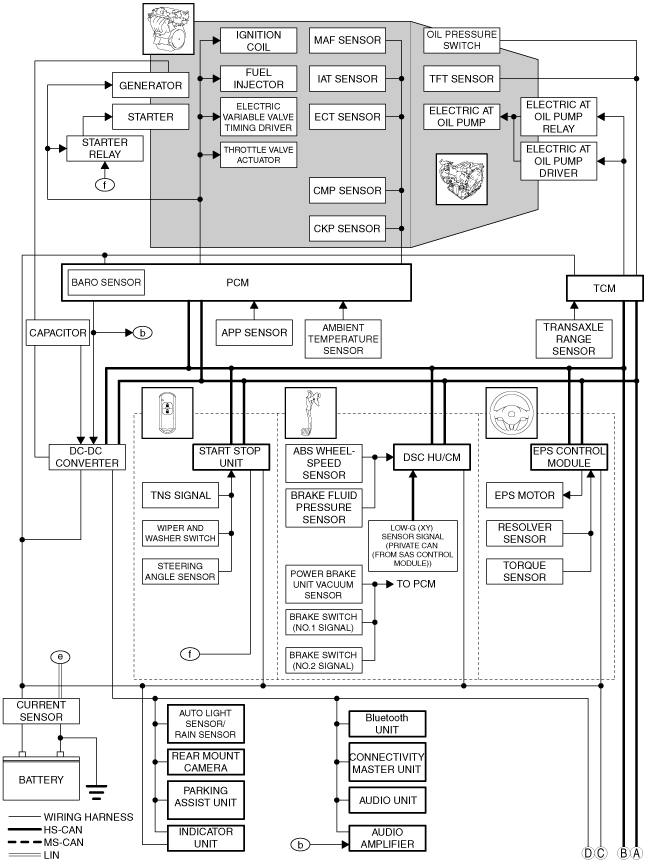

With i-ELOOP (ATX)

am3zzn00006366

am3zzn00005119

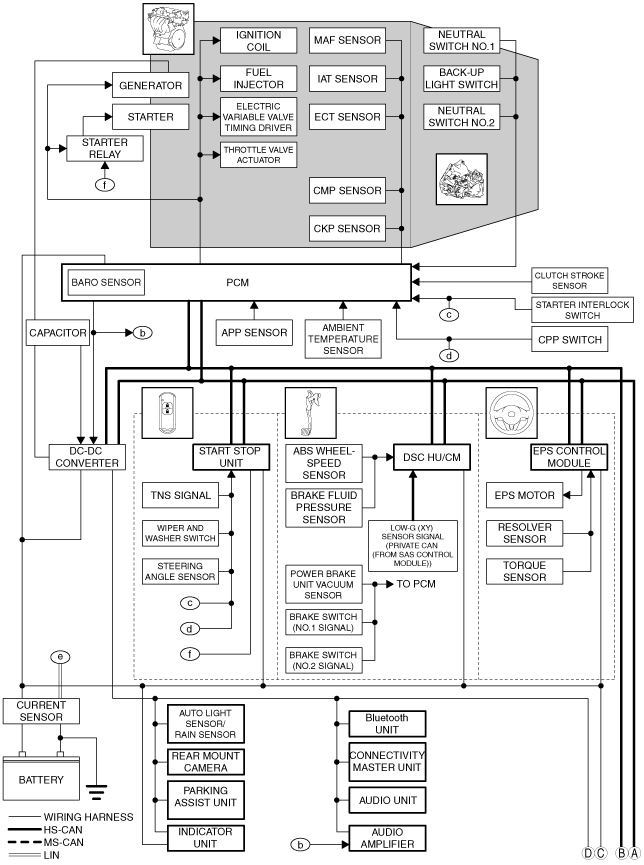

With i-ELOOP (MTX)

am3zzn00006367

am3zzn00005119

SKYACTIV-D 1.5

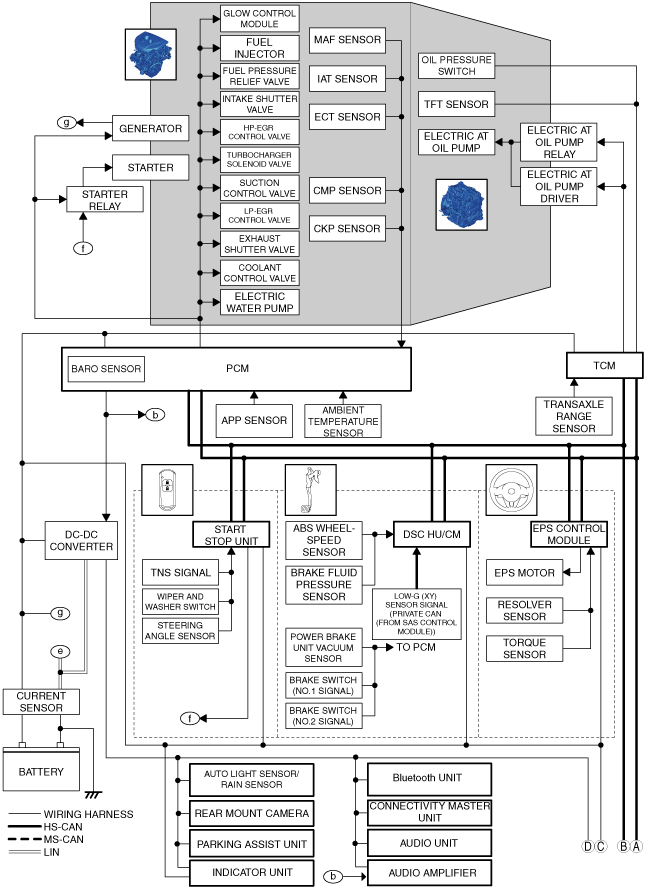

ATX

am3zzn00006368

am3zzn00005119

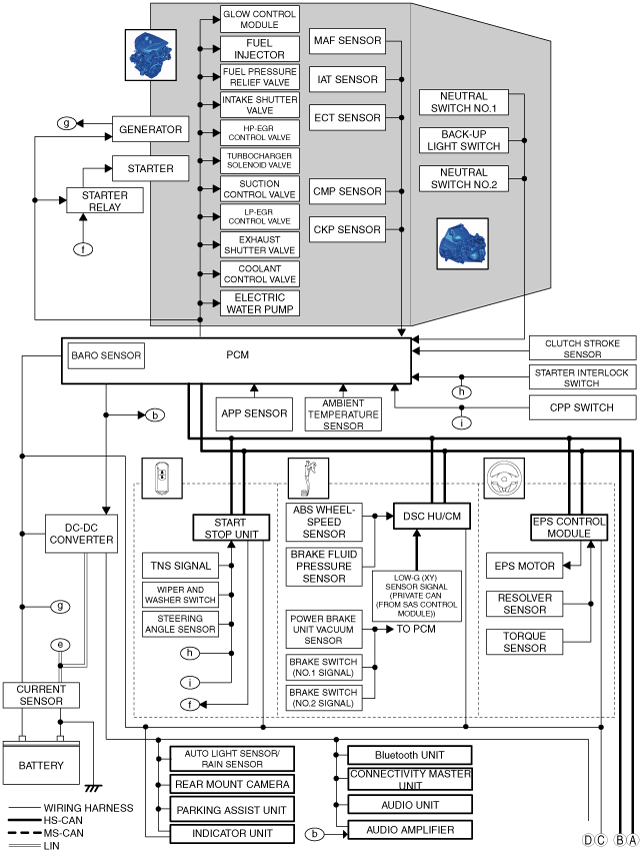

MTX

am3zzn00006369

am3zzn00005119

SKYACTIV-D 2.2

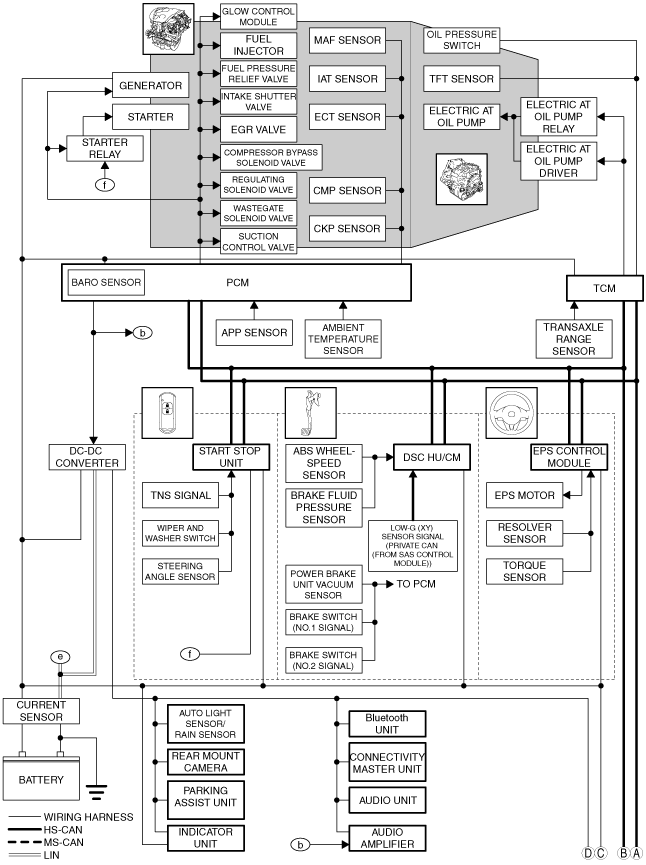

Without i-ELOOP (ATX)

am3zzn00006370

am3zzn00005119

Without i-ELOOP (MTX)

am3zzn00006371

am3zzn00005119

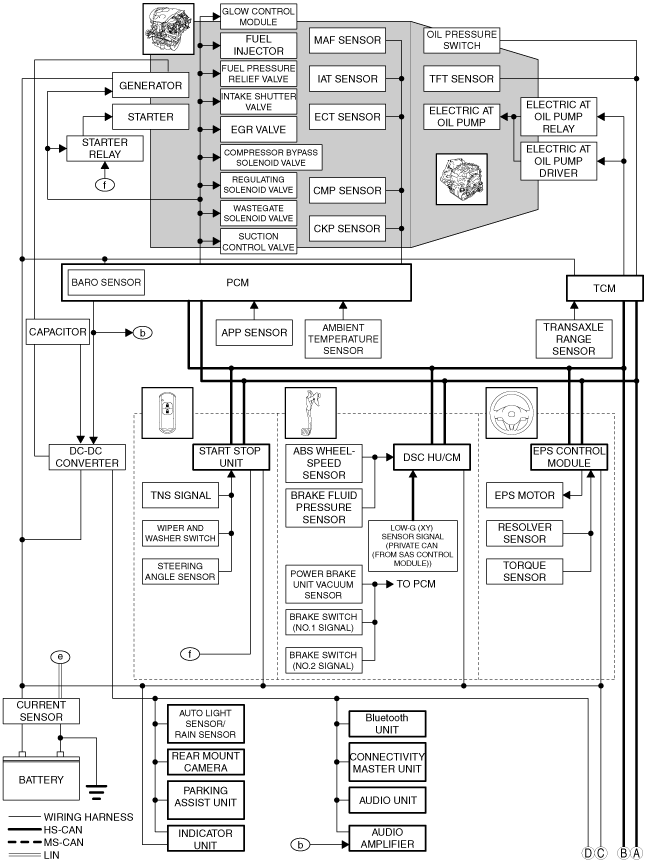

With i-ELOOP (ATX)

am3zzn00006372

am3zzn00005119

With i-ELOOP (MTX)

am3zzn00006373

am3zzn00005119

i-stop Control Modules

• i-stop is controlled by the following modules. For details on each of the controls, refer to the control content for each module.

Module name

Reference

PCM

SKYACTIV-G 1.5, SKYACTIV-G 2.0

(See i-stop CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

(See DC-DC CONVERTER CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

(See i-stop INDICATOR ALARM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

(See i-stop WARNING ALARM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

SKYACTIV-D 1.5

(See i-stop CONTROL [SKYACTIV-D 1.5].)

(See DC-DC CONVERTER CONTROL [SKYACTIV-D 1.5].)

(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5].)

(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 1.5].)

(See i-stop INDICATOR ALARM [SKYACTIV-D 1.5].)

(See i-stop WARNING ALARM [SKYACTIV-D 1.5].)

SKYACTIV-D 2.2

(See i-stop CONTROL [SKYACTIV-D 2.2].)

(See DC-DC CONVERTER CONTROL [SKYACTIV-D 2.2].)

(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].)

(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)

(See i-stop INDICATOR ALARM [SKYACTIV-D 2.2].)

(See i-stop WARNING ALARM [SKYACTIV-D 2.2].)

DC-DC CONVERTER (i-ELOOP)

(See i-ELOOP [i-ELOOP].)

DSC HU/CM

(See VEHICLE ROLL PREVENTION FUNCTION.)

TCM (ATX)

(See ELECTRIC AT OIL PUMP [FW6A-EL].)

(See ELECTRIC AT OIL PUMP [CW6A-EL].)

(See ELECTRIC AT OIL PUMP [EW6A-EL].)

(See ELECTRIC AT OIL PUMP [GW6A-EL].)

EPS CONTROL MODULE

(See ELECTRIC POWER STEERING (EPS) CONTROL MODULE.)

SAS CONTROL MODULE

(See SAS CONTROL MODULE.)

INSTRUMENT CLUSTER

(See INSTRUMENT CLUSTER.)

START STOP UNIT

(See START STOP UNIT.)

FRONT BODY CONTROL MODULE (FBCM)

(See FRONT BODY CONTROL MODULE (FBCM).)

REAR BODY CONTROL MODULE (RBCM)

(See REAR BODY CONTROL MODULE (RBCM).)

Module name	Reference
PCM	SKYACTIV-G 1.5, SKYACTIV-G 2.0 (See i-stop CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See DC-DC CONVERTER CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop INDICATOR ALARM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop WARNING ALARM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
	SKYACTIV-D 1.5 (See i-stop CONTROL [SKYACTIV-D 1.5].) (See DC-DC CONVERTER CONTROL [SKYACTIV-D 1.5].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 1.5].) (See i-stop INDICATOR ALARM [SKYACTIV-D 1.5].) (See i-stop WARNING ALARM [SKYACTIV-D 1.5].)
	SKYACTIV-D 2.2 (See i-stop CONTROL [SKYACTIV-D 2.2].) (See DC-DC CONVERTER CONTROL [SKYACTIV-D 2.2].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].) (See i-stop INDICATOR ALARM [SKYACTIV-D 2.2].) (See i-stop WARNING ALARM [SKYACTIV-D 2.2].)
DC-DC CONVERTER (i-ELOOP)	(See i-ELOOP [i-ELOOP].)
DSC HU/CM	(See VEHICLE ROLL PREVENTION FUNCTION.)
TCM (ATX)	(See ELECTRIC AT OIL PUMP [FW6A-EL].) (See ELECTRIC AT OIL PUMP [CW6A-EL].) (See ELECTRIC AT OIL PUMP [EW6A-EL].) (See ELECTRIC AT OIL PUMP [GW6A-EL].)
EPS CONTROL MODULE	(See ELECTRIC POWER STEERING (EPS) CONTROL MODULE.)
SAS CONTROL MODULE	(See SAS CONTROL MODULE.)
INSTRUMENT CLUSTER	(See INSTRUMENT CLUSTER.)
START STOP UNIT	(See START STOP UNIT.)
FRONT BODY CONTROL MODULE (FBCM)	(See FRONT BODY CONTROL MODULE (FBCM).)
REAR BODY CONTROL MODULE (RBCM)	(See REAR BODY CONTROL MODULE (RBCM).)
