OIL PAN REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo]

id011106800200

Warning
•  Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.
•  A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.
•  Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.
•  Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the “Fuel Line Safety Procedure”. (See BEFORE SERVICE PRECAUTION [MZR 2.3 DISI Turbo].)

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

3.  Remove the charge air cooler. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

4.  Remove the high pressure fuel pump and high pressure fuel pump cover. (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

5.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

6.  Disconnect the ventilation hose from the cylinder head cover. (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

7.  Remove the coolant reserve tank with the hose still connected and set it out of the way. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

8.  Remove the front wheel and tire. (RH) (See GENERAL PROCEDURES (SUSPENSION).)

9.  Remove the aerodynamic under cover No.2 and splash shield as a single unit. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.) (See SPLASH SHIELD REMOVAL/INSTALLATION.)

10.  Drain the engine oil. (See ENGINE OIL REPLACEMENT [MZR 2.3 DISI Turbo].)

11.  Remove the nut shown in the figure and set the power steering pipe component out of the way.

am3uuw00002800

12.  Loosen the water pump pulley bolts before removing the drive belt.

13.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

14.  Remove the crankshaft position (CKP) sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

15.  Remove the engine front cover. (See TIMING CHAIN REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

16.  Remove in the order indicated in the table.

17.  Install in the reverse order of removal.

18.  Refill with the specified type and amount of the engine oil. (See ENGINE OIL REPLACEMENT [MZR 2.3 DISI Turbo].)

19.  Start the engine and confirm that there is no oil leakage.

•  If there is oil leakage, repair or replace the applicable part.

20.  Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION [MZR 2.3 DISI Turbo].)

21.  Inspect for the ignition timing and idle speed. (See ENGINE TUNE-UP [MZR 2.3 DISI Turbo].)

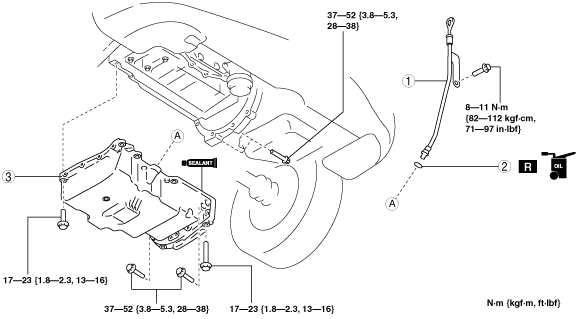

am3uuw00006077

1
Dipstick pipe
2
O-ring
3
Oil pan
(See Oil Pan Removal Note.)
(See Oil Pan Installation Note.)


Oil Pan Removal Note

1.  Remove the oil pan using a separator tool.

acxuuw00001992


Oil Pan Installation Note

Caution
•  Apply the silicon sealant in a single, unbroken line.
•  Install the oil pan before the applied sealant starts to harden.
•  Using bolts with the old seal adhering could cause cracks in the cylinder block.
acxuuw00001993

1.  Completely clean and remove any oil, dirt, sealant or other foreign material that may be adhering to the cylinder block and oil pan.

2.  When reusing the oil pan installation bolts, clean any old sealant from the bolts.

3.  Apply silicone sealant to the oil pan along the inside of the bolt holes as shown in the figure.

am3uuw00006078

Thickness
2.2—3.2 mm {0.09—0.12 in}

4.  Install the oil pan to the cylinder block.

5.  Use a square ruler to align the oil pan and the cylinder block junction side on the engine front cover side.

acxuuw00001994

6.  Tighten the bolts in the order shown in the figure.

am3uuw00006079

Tightening torque
17—23 N·m {1.8—2.3 kgf·m, 13—16 ft·lbf}

7.  Tighten the oil pan-transaxle installation bolts.

am3uuw00006080

Tightening torque
37—52 N·m {3.8—5.3 kgf·m, 28—38 ft·lbf}
