FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.0]

id0114z5801600

Warning
•  Fuel is very flammable liquid. If fuel spills or leaks from the pressurized fuel system, it will cause serious injury or death and facility breakage. Fuel can also irritate skin and eyes. To prevent this, always complete the “Fuel Line Safety Procedure”, while referring to the “BEFORE SERVICE PRECAUTION”.
•  A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching the vehicle body.
Caution
•  Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.

1.  Level the vehicle.

2.  Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [SKYACTIV-G 2.0].)

3.  Disconnect the quick release connector. (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

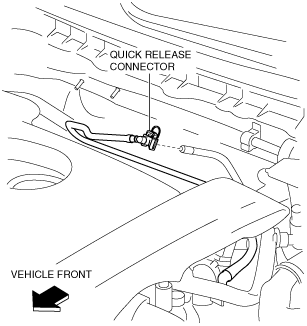

am3uuw00008551

4.  Connect a long hose to the disconnected quick release connector and drain the fuel into a container used for collecting gasoline.

5.  Drain the fuel from the fuel tank using the following procedure:

Using M-MDS
1.  Connect the M-MDS to the DLC-2.
am3zzw00012209
2.  Using the simulation function “FP”, start the fuel pump. (See ON-BOARD DIAGNOSTIC TEST [SKYACTIV-G 2.0].)
Without using M-MDS
1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
3.  Remove the fuel pump relay.
am3zzw00012210
Caution
•  Short the specified terminals because shorting the wrong terminal of the relay and fuse block may cause malfunctions.
4.  Using a jumper wire, short fuel pump relay terminals C and D in the relay and fuse block.
am6zzw00000268
5.  Connect the negative battery cable and operate the fuel pump. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
Caution
•  The fuel pump could be damaged if it is operated while there is no fuel in the fuel tank. Verify the amount of fuel being discharged from the hose and stop operation of the fuel pump when essentially no fuel is being discharged.

6.  Stop the fuel pump using the following procedure.

Using M-MDS
1.  Using the simulation function “FP”, stop the fuel pump. (See ON-BOARD DIAGNOSTIC TEST [SKYACTIV-G 2.0].)
2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
Without using M-MDS
1.  Disconnect the negative battery cable to stop the fuel pump.

7.  To remove the fuel pump unit, remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(2)  Service hole cover
am3uuw00008553
(3)  Fuel pump unit connector

8.  Remove the TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

9.  Remove the under cover. (See REAR TRAILING LINK REMOVAL/INSTALLATION.)

10.  Remove the insulator (middle No.1). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

11.  Remove in the order indicated in the table.

12.  Install in the reverse order of removal.

13.  Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [SKYACTIV-G 2.0].)

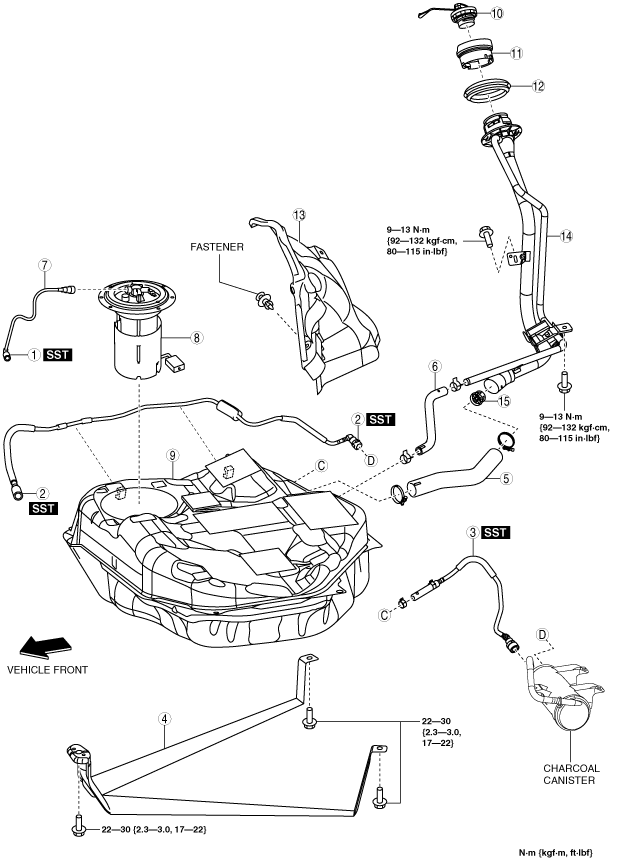

am3zzw00007815

1
Quick release connector
(See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
2
Quick release connector
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
3
Evaporative hose
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
4
Fuel tank strap
5
Joint hose
(See Joint Hose Installation Note.)
6
Breather hose
(See Breather Hose Removal Note.)
(See Breather Hose Installation Note.)
7
Fuel hose
(See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
8
Fuel pump unit
(See FUEL PUMP UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
9
Fuel tank
10
Fuel-filler cap
11
Protector
12
Dust cover
13
Fuel-filler pipe protector
14
Fuel-filler pipe
(See Fuel-Filler Pipe Removal Note.)
15
Non-return valve


Breather Hose Removal Note

1.  Disconnect the breather hose of the fuel-filler pipe side.

2.  Remove the following parts as a single unit.

•  Fuel tank
•  Breather hose
•  Fuel pump unit
•  Fuel hose

3.  Remove the breather hose.


Fuel-Filler Pipe Removal Note

1.  Remove the rear tire (RH). (See GENERAL PROCEDURES (SUSPENSION).)

2.  Remove the fuel-filler pipe.


Breather Hose Installation Note

1.  Install the breather hose as shown in the figure.

Fuel tank side

am3zzw00012211

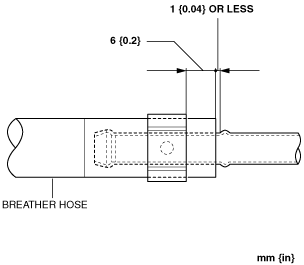

Fuel-filler pipe side

am3zzw00012212


Joint Hose Installation Note

1.  Install the joint hose and clamp as shown in the figure.

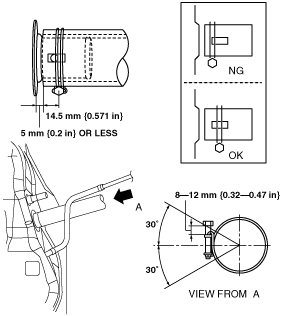

am3zzw00012525
