EMISSION SYSTEM LOCATION INDEX [MZR 1.5, MZR 1.6]

id0116ad803700

Engine Compartment Side

am3zzw00005597

1	EGR valve (Vehicles with EGR system) (See EGR VALVE REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See EGR VALVE INSPECTION [MZR 1.5, MZR 1.6].)
2	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See PURGE SOLENOID VALVE INSPECTION [MZR 1.5, MZR 1.6].)
3	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [MZR 1.5, MZR 1.6].)

Exhaust System Side

Vehicles without TWC

am3zzw00012132

Vehicles with TWC

am3zzw00012133

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

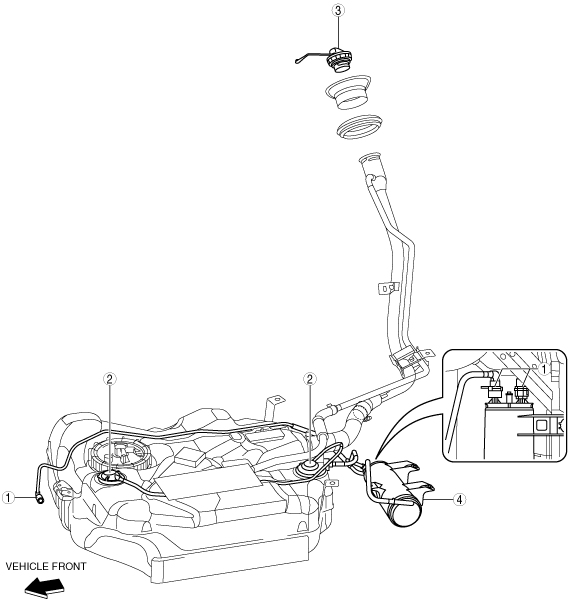

Fuel Tank Side

am3zzw00012134

1	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
2	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See ROLLOVER VALVE INSPECTION [MZR 1.5, MZR 1.6].) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See CHECK VALVE (TWO-WAY) INSPECTION [MZR 1.5, MZR 1.6].)
3	Fuel-filler cap (See FUEL TANK REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
4	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See CHARCOAL CANISTER INSPECTION [MZR 1.5, MZR 1.6].)
