PARKING BRAKE LEVER REMOVAL/INSTALLATION

id041200801600

1.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(2)  Shift knob (MTX)/Selector lever knob (ATX or CVT) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)

(3)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(5)  Console (See CONSOLE REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  After installation, inspect the parking brake lever stroke. (See PARKING BRAKE LEVER INSPECTION.)

L.H.D.

am3zzw00007154

1	Parking brake switch connector
2	Adjusting nut
3	Bolt
4	Parking brake lever
5	Parking brake switch

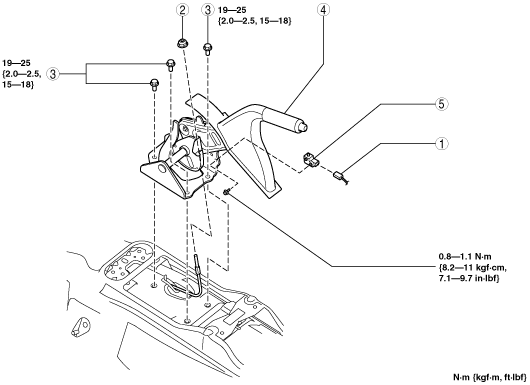

R.H.D.

am3zzw00005758

1	Parking brake switch connector
2	Adjusting nut
3	Bolt
4	Parking brake lever
5	Parking brake switch
