CLUTCH UNIT REMOVAL/INSTALLATION [F35M-R]

id0510008003m0

Caution
•  When newly replacing the clutch cover or the clutch disc, replace the clutch cover and the clutch disc as a set.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

3.  Remove the following parts:

(1)  Battery and battery tray (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
(2)  Fresh-air duct and the air cleaner as a single unit (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6].)
(3)  Front tires (See GENERAL PROCEDURES (SUSPENSION).)
(4)  Splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)
(5)  Aerodynamic under cover No.2 (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)
(6)  EGR pipe (intake manifold side)(European (L.H.D. U.K.) specs.)(See EGR PIPE REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

4.  Drain the transaxle oil into a suitable container. (See TRANSAXLE OIL REPLACEMENT [F35M-R].)

5.  Remove the manual transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [F35M-R].)

6.  Remove in the order indicated in the table.

7.  Install in the reverse order removal.

8.  Add the specified amount of specified transaxle oil. (See TRANSAXLE OIL REPLACEMENT [F35M-R].)

Note
•  If the transaxle is overhauled and installed to the vehicle, perform the "INSPECTION AFTER TRANSAXLE INSTALLATION" and verify that there is no abnormality. (See INSPECTION AFTER TRANSAXLE INSTALLATION [F35M-R].)

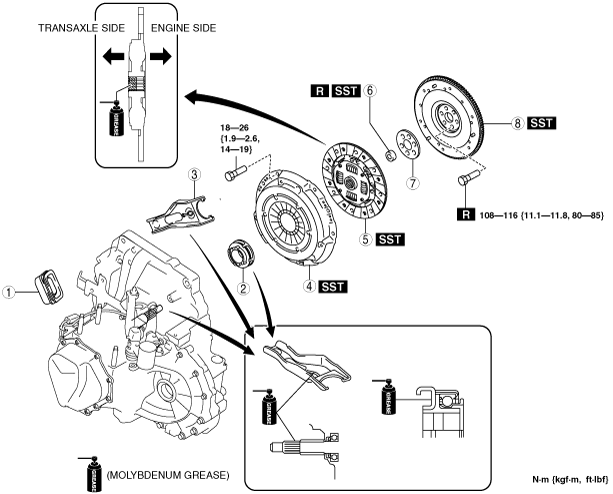

am3zzw00005487

1
Boot
2
Clutch release collar
3
Clutch release fork
(See Clutch Release Fork Removal Note.)
4
Clutch cover
(See Clutch Cover and Disc Removal Note.)
(See Clutch Cover Installation Note.)
5
Clutch disc
(See Clutch Cover and Disc Removal Note.)
(See Clutch Disc Installation Note.)
6
Pilot bearing
(See Pilot Bearing Removal Note.)
(See Pilot Bearing Installation Note.)
7
Plate
8
Flywheel
(See Flywheel Removal Note.)
(See Flywheel Installation Note.)


Clutch Release Fork Removal Note

1.  Remove the fork supporter before disassembling the clutch release fork.

am3uuw00002080


Clutch Cover and Disc Removal Note

1.  Install the SSTs.

am3zzw00005488

2.  Loosen each bolt one turn at a time in a crisscross pattern until spring tension is released.

3.  Remove the clutch cover and disc.


Pilot Bearing Removal Note

Note
•  The pilot bearing does not need to be removed unless you are replacing it.

1.  Use the SST to remove the pilot bearing.

am3zzw00005489


Flywheel Removal Note

1.  Hold the flywheel using the SST.

am3zzw00005490

2.  Remove the bolts evenly and gradually in a crisscross pattern.

3.  Remove the flywheel.


Flywheel Installation Note

1.  Clean the crankshaft thread holes.

2.  Install the flywheel to the crankshaft.

3.  Hand-tighten the new flywheel lock bolts.

4.  Install the SST to the flywheel.

am3zzw00005491

5.  Gradually tighten the flywheel lock bolts in a crisscross pattern.

Tightening torque
97—103 N·m {9.9—10 kgf·m, 72—75 ft·lbf}


Pilot Bearing Installation Note

1.  Use the SSTs to install the pilot bearing.

am3zzw00005492

2.  As shown in the figure, press-fit the pilot bearing to the position which is 0—0.4 mm {0.00—0.01 in} from the crankshaft end.

am3zzw00008192

Clutch Disc Installation Note

1.  Clean the splines of the clutch disc and the main drive gear with a brush.

2.  Spread a thin layer of clutch grease on the splines.

3.  Hold the clutch disc position using the SST.

am3zzw00008193


Clutch Cover Installation Note

1.  Install the SSTs.

am3zzw00005912

2.  Tighten the bolts in Min. 2 stages.

3.  Tighten partially with a crisscross pattern.

4.  Fully tighten to specified torque with a crisscross pattern.

Tightening torque
18—26 N·m {1.9—2.6 kgf·m, 14—19 ft·lbf}
