DTC B100C:12 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id09021c395800

Warning
•  If this DTC is detected, the system will enter the fail-safe function to ensure safety. If the vehicle is left as it is for a specified time limit or more, or the ignition is operated a specified number of times or more while the fail-safe function is operating, the ignition will remain stuck in off and it is possible that the engine cannot be started. Therefore, perform the malfunction diagnosis while the engine can be started. In addition, after having performed the malfunction diagnosis, verify that this DTC is not detected with the steering wheel locked. If the DTC is not detected, the system returns to normal from the fail-safe function.
Note
•  When the system enters the fail-safe function, the keyless warning light and the push button start indicator light illuminate as follows:
―  When the clutch pedal (MTX) or the brake pedal (ATX) is depressed while the ignition is switched off, both lights illuminate (red).
―  When the ignition is switched to ACC or ON, both lights illuminate (red) constantly.

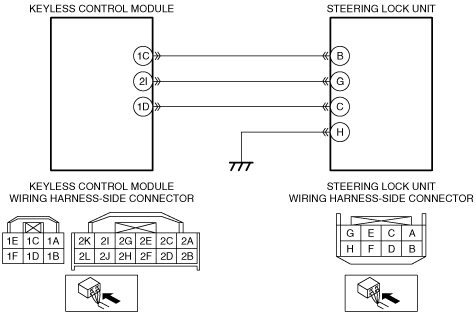

am3zzw00006965

DESCRIPTION

Short to power supply in steering lock unit power supply circuit
DETECTION CONDITION
•  Steering lock unit power supply monitor is on for 3 s when the steering lock unit power supply transistor is not active.
POSSIBLE CAUSE
•  Steering lock unit connector or terminals malfunction
•  Keyless control module connector or terminals malfunction
•  Short to power supply in wiring harness between the following terminals:
―  Steering lock unit terminal B—Keyless control module terminal 1C
•  Steering lock unit malfunction
•  Keyless control module malfunction

Diagnostic Procedure

Step

Inspection

Action
1
INSPECT STEERING LOCK UNIT CONNECTOR AND TERMINALS
•  Switch the ignition to off.
•  Disconnect the negative battery cable.
•  Disconnect the steering lock unit connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 5.
No
Go to the next step.
2
INSPECT KEYLESS CONTROL MODULE CONNECTOR AND TERMINALS
•  Disconnect the keyless control module connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 5.
No
Go to the next step.
3
INSPECT STEERING LOCK UNIT POWER SUPPLY CIRCUIT FOR SHORT TO POWER SUPPLY
•  Steering lock unit and keyless control module connectors are disconnected.
•  Reconnect the negative battery cable.
•  Switch the ignition to ON.
•  Measure the voltage at the following terminal (wiring harness-side):
―  Steering lock unit terminal B
•  Is there any voltage?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 5.
No
Go to the next step.
4
INSPECT STEERING LOCK UNIT
•  Switch the ignition to off.
•  Disconnect the negative battery cable.
•  Reconnect the steering lock unit connector.
•  Reconnect the negative battery cable.
•  Inspect the steering lock unit.
•  Is there any malfunction?
Yes
Replace the steering lock unit and perform the steering lock unit programming, then go to the next step.
(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
(See STEERING LOCK UNIT ID CODE REGISTRATION.)
No
Go to the next step.
5
VERIFY TROUBLESHOOTING COMPLETED
•  Make sure to reconnect the disconnected connectors.
•  Reconnect the negative battery cable.
•  Perform the following procedure within 5 min.
1.  Clear the DTC from the keyless control module using the M-MDS.
2.  Switch the ignition to off, then open the door to lock the steering.
3.  Operate the advanced key to activate the keyless control module.
4.  Perform the advanced keyless entry and push button start system DTC inspection using the M-MDS.
•  Is the same DTC present?
Yes
Replace the keyless control module, then go to the next step.
(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION.)
No
Go to the next step.
6
VERIFY THAT NO OTHER DTCs ARE PRESENT
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
No
DTC troubleshooting completed.
