KEYLESS CONTROL MODULE REMOVAL/INSTALLATION

id091400513800


L.H.D.

1.  If the keyless control module is replaced, always perform the following procedure.

•  Vehicles with immobilizer system
―  Keyless Control Module Configuration (See KEYLESS CONTROL MODULE CONFIGURATION.)
―  Immobilizer System-related Parts Programming [No.4 Programming Procedure Due to Keyless Control Module Replacement] (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

3.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Grove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(4)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

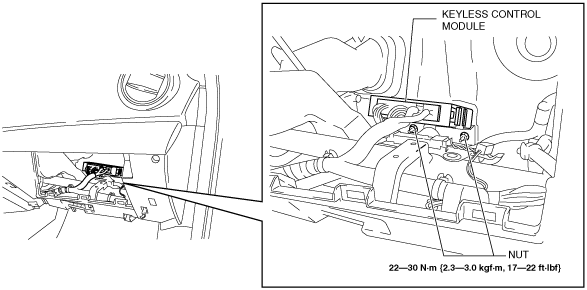

4.  Remove in the nuts.

am3zzw00011867

5.  Disconnect the connector.

am3zzw00011868

6.  Remove the keyless control module.

7.  Install in the reverse order of removal.


R.H.D.

1.  If the keyless control module is replaced, always perform the following procedure.

•  Vehicles with immobilizer system
―  Keyless Control Module Configuration (See KEYLESS CONTROL MODULE CONFIGURATION.)
―  Immobilizer System-related Parts Programming [No.4 Programming Procedure Due to Keyless Control Module Replacement] (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
(4)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(5)  Selector lever knob (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)
(6)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(7)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(8)  Console (See CONSOLE REMOVAL/INSTALLATION.)

4.  Set the bonnet release lever out of the way. (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

5.  Remove the lower panel. (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

6.  Disconnect the keyless control module connector.

am3zzw00013289

7.  Disconnect the USB adapter connector. (with USB adapter)

am3zzw00013287

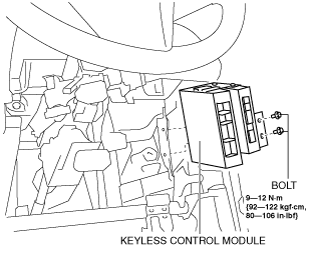

8.  Remove the bolts.

am3zzw00013288

9.  Remove the keyless control module.

10.  Install in the reverse order of removal.
