REAR BUMPER REMOVAL/INSTALLATION

id091000800700

4SD

1. Disconnect the negative battery cable. (See \nBATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See \nBATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See \nBATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See \nBATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See \nBATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See \nBATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See \nBATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2. Remove the rear combination light. (See \nREAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

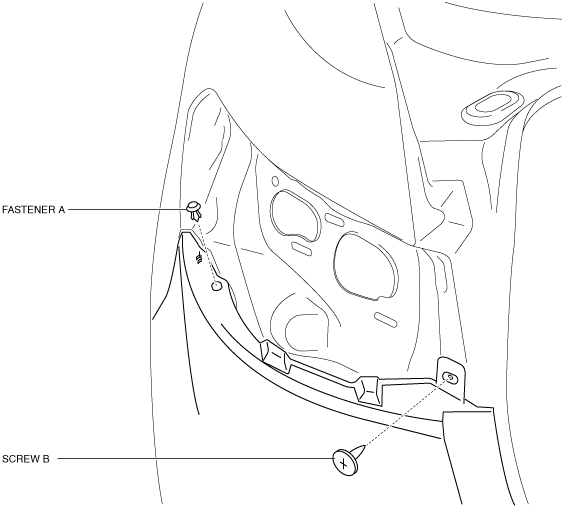

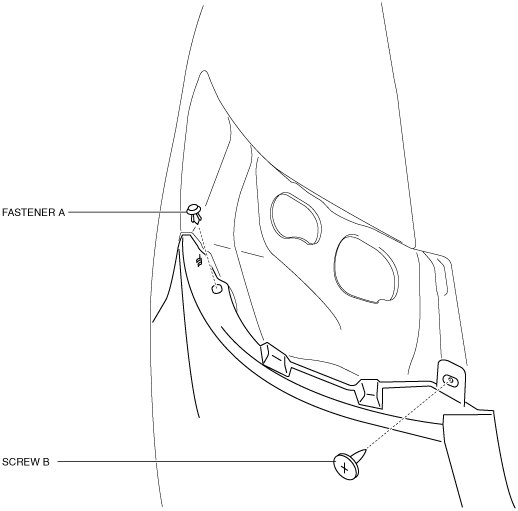

3. Remove the fastener A and screw B.

am3uuw00003899

4. Remove the rear splash shield. (See \nSPLASH SHIELD REMOVAL/INSTALLATION.)

5. Remove the screws C.

am3uuw00003900

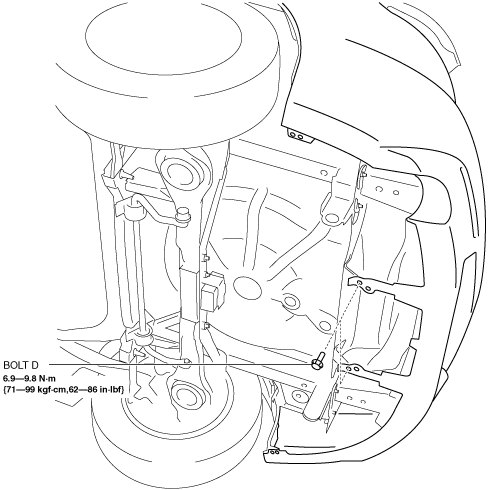

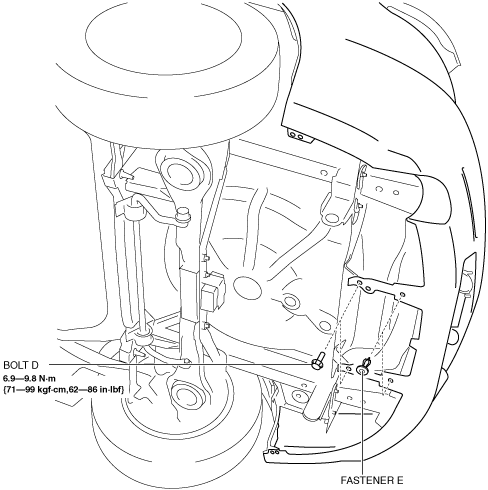

6. Remove the bolts D and fastener E.

am3zzw00013467

7. Affix the protective tape to the position shown in the figure.

am3uuw00004303

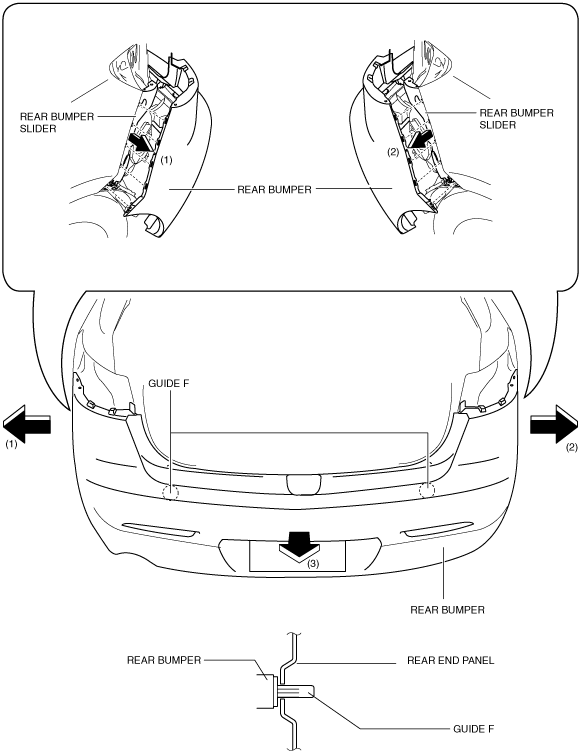

8. Pull the rear bumper in the direction of arrow (1), (2) shown in the figure to disengage the rear bumper from the rear bumper slider.

9. Pull the rear bumper in the direction of arrow (3), then remove the guide F.

am3zzw00013468

Caution

• When disengaging the rear bumper from the rear bumper slider, the rear bumper could fall and be damaged. Support the rear bumper so that it does not fall.

10. Disconnect the license plate light connector.

11. Install in the reverse order of removal.

5HB
