SEATS LOCATION INDEX

id091300800100

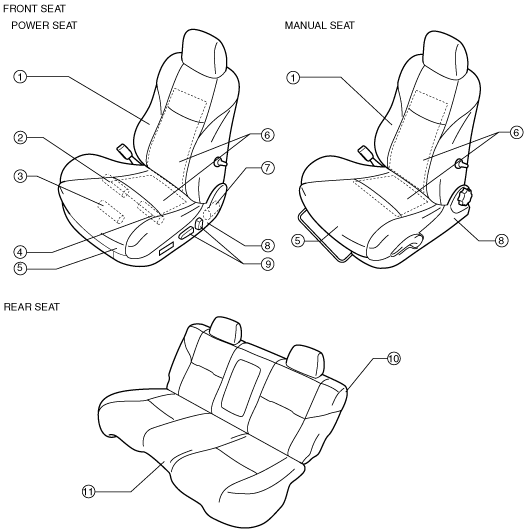

L.H.D.

am3zzw00012330

1	Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)
2	Front tilt motor (See FRONT TILT MOTOR INSPECTION.)
3	Slide motor (See SLIDE MOTOR INSPECTION.)
4	Rear tilt motor (See REAR TILT MOTOR INSPECTION.)
5	Front seat cushion trim (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)
6	Seat warmer unit (See SEAT WARMER UNIT REMOVAL/INSTALLATION.) (See SEAT WARMER UNIT INSPECTION.)
7	Recliner motor (See RECLINER MOTOR INSPECTION.)
8	Front seat side cover (See FRONT SEAT COVER REMOVAL/INSTALLATION [VEHICLES WITH POWER SEAT SYSTEM].) (See FRONT SEAT COVER REMOVAL/INSTALLATION [VEHICLES WITHOUT POWER SEAT SYSTEM].)
9	Power seat switch (See POWER SEAT SWITCH INSPECTION.)
10	Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.) (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.) (See REAR SEAT BACK TRIM REMOVAL/INSTALLATION.)
11	Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.) (See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

R.H.D.

am3zzw00012331

1	Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)
2	Front tilt motor (See FRONT TILT MOTOR INSPECTION.)
3	Slide motor (See SLIDE MOTOR INSPECTION.)
4	Rear tilt motor (See REAR TILT MOTOR INSPECTION.)
5	Front seat cushion trim (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)
6	Seat warmer unit (See SEAT WARMER UNIT REMOVAL/INSTALLATION.) (See SEAT WARMER UNIT INSPECTION.)
7	Recliner motor (See RECLINER MOTOR INSPECTION.)
8	Front seat side cover (See FRONT SEAT COVER REMOVAL/INSTALLATION [VEHICLES WITH POWER SEAT SYSTEM].) (See FRONT SEAT COVER REMOVAL/INSTALLATION [VEHICLES WITHOUT POWER SEAT SYSTEM].)
9	Power seat switch (See POWER SEAT SWITCH INSPECTION.)
10	Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.) (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.) (See REAR SEAT BACK TRIM REMOVAL/INSTALLATION.)
11	Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.) (See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION.)
