FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION
id091400510800
L.H.D.
4SD
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)
2. Remove the following parts:
- (1) Front seat (LH) (See FRONT SEAT REMOVAL/INSTALLATION.)
- (2) Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (3) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) B-pillar lower trim (LH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (5) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (6) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
- (7) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (8) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (9) Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (10) Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
- (11) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

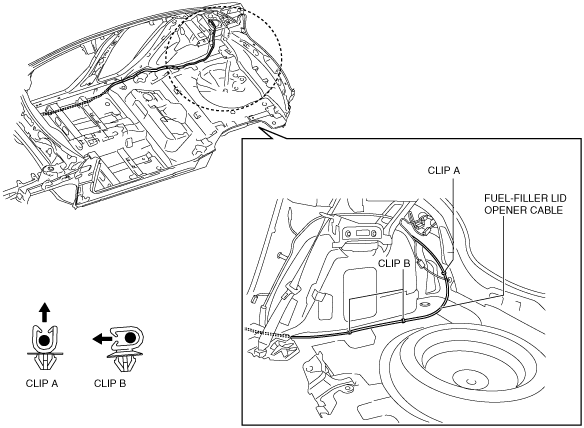

3. Remove the fuel-filler lid opener cable from clips A and B.
4. Remove the fuel-filler lid opener cable from clips C.

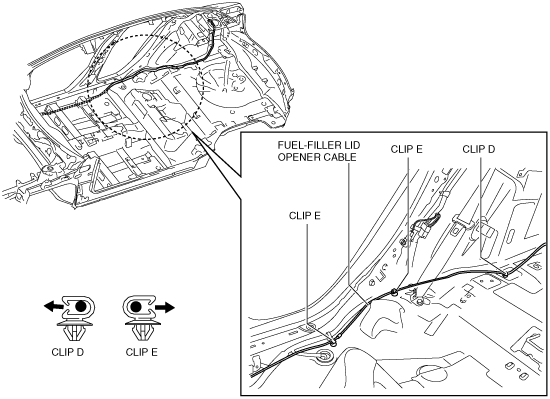

5. Remove the fuel-filler lid opener cable from clips D and E.

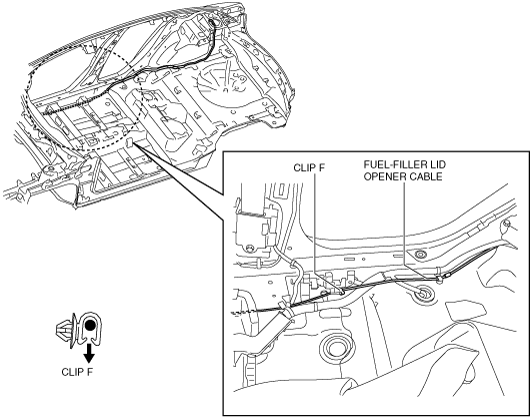

6. Remove the fuel-filler lid opener cable from clip F.
7. Install in the reverse order of removal.
5HB
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)
2. Remove the following parts:
- (1) Front seat (LH) (See FRONT SEAT REMOVAL/INSTALLATION.)
- (2) Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (3) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) B-pillar lower trim (LH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (5) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (6) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
- (7) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (8) Trunk side upper trim (RH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
- (9) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (10) Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (11) Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
- (12) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
3. Remove the fuel-filler lid opener cable from clips A and B.
4. Remove the fuel-filler lid opener cable from clips C.
5. Remove the fuel-filler lid opener cable from clips D and E.
6. Remove the fuel-filler lid opener cable from clip F.
7. Install in the reverse order of removal.
R.H.D.
4SD
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)
2. Remove the following parts:
- (1) Front seat (RH) (See FRONT SEAT REMOVAL/INSTALLATION.)
- (2) Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (3) Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) B-pillar lower trim (RH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (5) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (6) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
- (7) Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (8) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (9) Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (10) Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
- (11) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

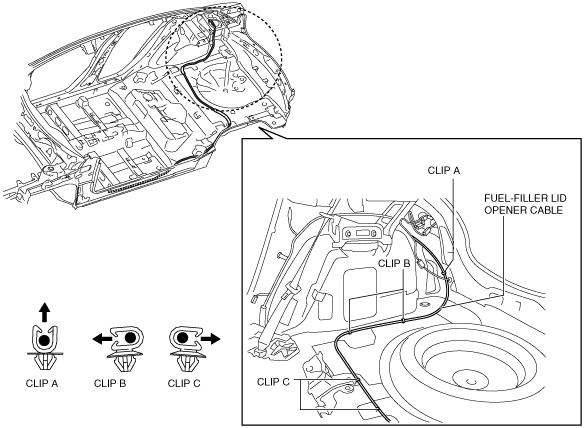

3. Remove the fuel-filler lid opener cable from clips A and B.

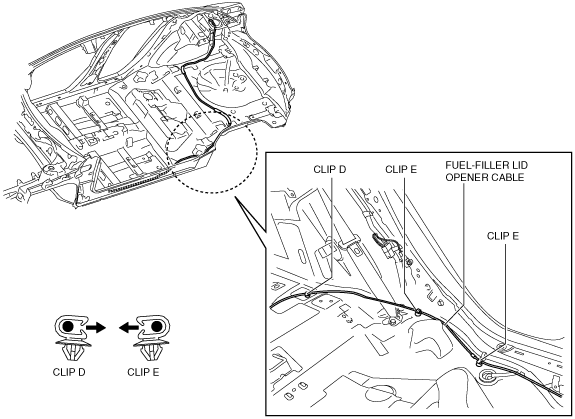

4. Remove the fuel-filler lid opener cable from clips C and D.

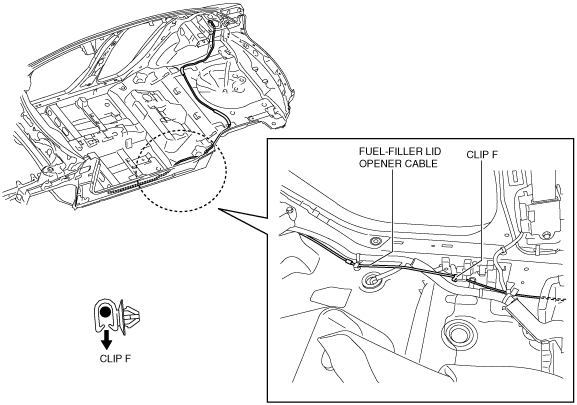

5. Remove the fuel-filler lid opener cable from clip E.
6. Install in the reverse order of removal.
5HB
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
2. Remove the following parts:
- (1) Front seat (RH) (See FRONT SEAT REMOVAL/INSTALLATION.)
- (2) Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (3) Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) B-pillar lower trim (RH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (5) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (6) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
- (7) Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (8) Trunk side upper trim (RH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
- (9) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (10) Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (11) Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
- (12) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
3. Remove the fuel-filler lid opener cable from clips A and B.
4. Remove the fuel-filler lid opener cable from clips C and D.
5. Remove the fuel-filler lid opener cable from clip E.
6. Install in the reverse order of removal.
