REAR DOOR LATCH SWITCH INSPECTION
id091400511900
1. Fully open the rear door glass.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
3. Remove the following parts:
- (1) Regulator handle (Vehicles without rear power window) (See REGULATOR HANDLE REMOVAL.) (See REGULATOR HANDLE INSTALLATION.)
- (2) Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)
- (3) Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)
- (4) Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)
- (5) Rear power window motor (Vehicles with rear power window) (See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)
- (6) Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)
- (7) Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

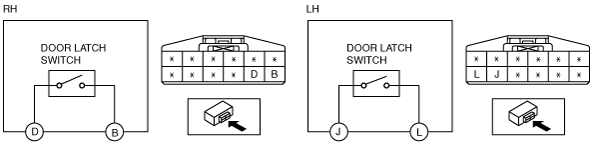

4. Verify that the continuity is as indicated in the table.
• If not as indicated in the table, replace the rear door latch and lock actuator.
-
Note
-

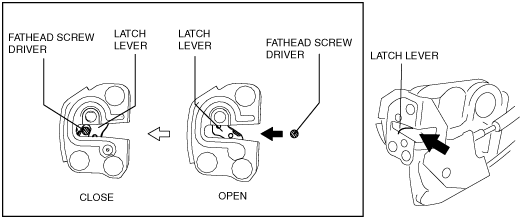

• When inspecting the close condition of the rear door latch switch, press in the latch lever using a flathead screwdriver.
