REAR DOOR LOCK ACTUATOR INSPECTION

id091400512000

1.  Fully open the rear door glass.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3.  Remove the following parts:

(1)  Regulator handle (Vehicles without rear power window) (See REGULATOR HANDLE REMOVAL.) (See REGULATOR HANDLE INSTALLATION.)

(2)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(4)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(5)  Rear power window motor (Vehicles with rear power window) (See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

(6)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

(7)  Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

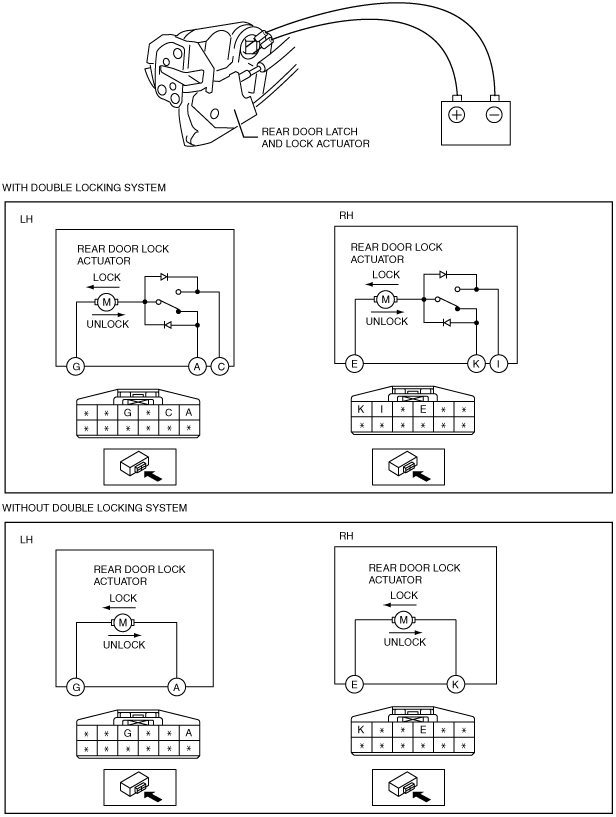

4.  Apply battery positive voltage and connect the ground to each terminal, and then verify the operation.
