KEYLESS BEEPER INSPECTION
id091400515100
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
2. Remove the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)
3. Remove the keyless beeper. (See KEYLESS BEEPER REMOVAL/INSTALLATION.)

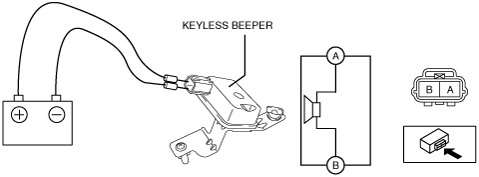

4. When applying battery positive voltage to the keyless beeper, verify that an electromagnetic sound is heard.
