HOLE COVER REMOVAL/INSTALLATION

id091700989800

L.H.D.

With Car-navigation system

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(2)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(3)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(4)  Center cover (See CENTER COVER REMOVAL/INSTALLATION.)

(5)  Dashboard upper panel (See DASHBOARD UPPER PANEL REMOVAL/INSTALLATION.)

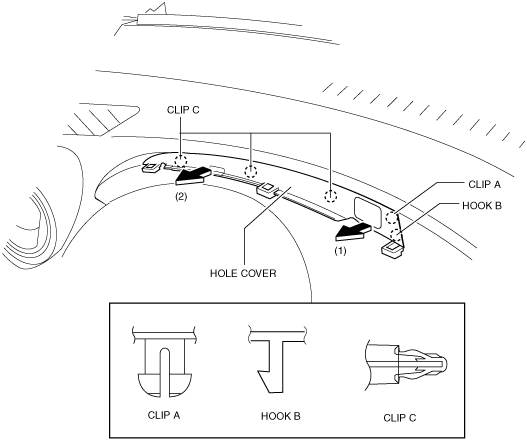

3.  Pull the hole cover in the direction of arrow (1), (2) shown in the figure, while remove the clip A, hook B and clips C.

am3zzw00006592

4.  Remove the hole cover.

5.  Install in the order of removal.

Without Car-navigation system

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(2)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(3)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(4)  Center cover (See CENTER COVER REMOVAL/INSTALLATION.)

(5)  Dashboard upper panel (See DASHBOARD UPPER PANEL REMOVAL/INSTALLATION.)

3.  Pull the hole cover in the direction of arrow (1), (2) shown in the figure, while remove the hook and clips.

am3uuw00004998

4.  Remove the hole cover.

5.  Install in the order of removal.

R.H.D.

With Car-navigation system

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(2)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(3)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(4)  Center cover (See CENTER COVER REMOVAL/INSTALLATION.)

(5)  Dashboard upper panel (See DASHBOARD UPPER PANEL REMOVAL/INSTALLATION.)

3.  Pull the hole cover in the direction of arrow (1), (2) shown in the figure, while remove the clip A, hook B and clips C.

am3zzw00006593

4.  Remove the hole cover.

5.  Install in the order of removal.

Without Car-navigation system

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(2)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(3)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(4)  Center cover (See CENTER COVER REMOVAL/INSTALLATION.)

(5)  Dashboard upper panel (See DASHBOARD UPPER PANEL REMOVAL/INSTALLATION.)

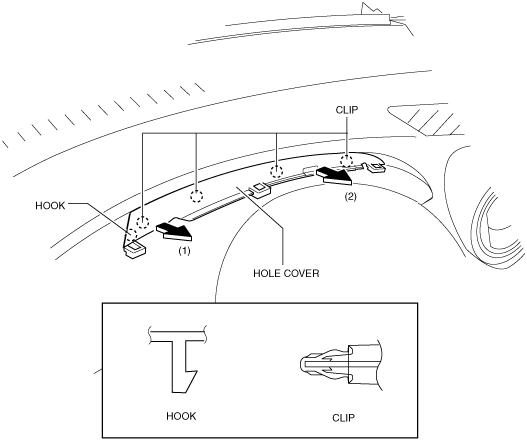

3.  Pull the hole cover in the direction of arrow (1), (2) shown in the figure, while remove the hook and clips.

am3zzw00005886

4.  Remove the hole cover.

5.  Install in the order of removal.
