CONDENSER REMOVAL/INSTALLATION

id092000803000

4SD

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4)  C-pillar trim (LH) (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

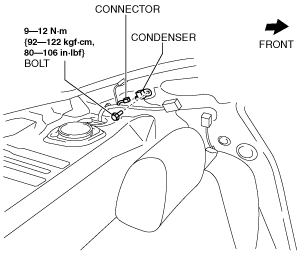

3.  Disconnect the connector.

am3uuw00002843

4.  Remove the bolt.

5.  Remove the condenser.

6.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

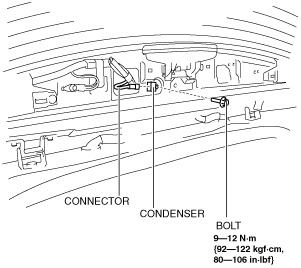

3.  Disconnect the connector.

am3uuw00002844

4.  Remove the bolt.

5.  Remove the condenser.

6.  Install in the reverse order of removal.
