GLASS ANTENNA INSPECTION

id092000806200

4SD

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

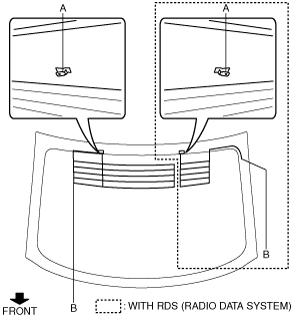

2.  Disconnect the antenna amplifier connector B. (See ANTENNA AMPLIFIER REMOVAL/INSTALLATION.)

3.  Disconnect the antenna feeder No.6 connector C. (with RDS (radio data system)) (See ANTENNA FEEDER NO.6 REMOVAL/INSTALLATION.)

4.  Inspect the glass antenna for damage visually.

5.  Inspect for continuity between the glass antenna terminals using an ohmmeter.

am3zzw00007708

•  If not as specified, repair the glass antenna. (See FILAMENT REPAIR.)

am3zzw00009853

5HB (with RDS (radio data system))

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the antenna feeder No.7 connector B. (See ANTENNA FEEDER NO.7 REMOVAL/INSTALLATION.)

4.  Inspect the glass antenna for damage visually.

5.  Inspect for continuity between the glass antenna terminals using an ohmmeter.

am3zzw00006085

•  If not as specified, repair the glass antenna. (See FILAMENT REPAIR.)

am3zzw00009853
