ANTENNA AMPLIFIER REMOVAL/INSTALLATION

id092000813300

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the rain sensor cover. (Vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)

3.  Disconnect the rain sensor connector. (Vehicles with auto light/wiper system)

4.  Partially peel back the seaming welts.

5.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof)
(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(6)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(7)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(9)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(10)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(11)  Map light (See MAP LIGHT REMOVAL/INSTALLATION.)
(12)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(13)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(14)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

6.  Remove in the order indicated in the table.

Without RDS (radio date system)

am3zzw00007668

1
Clip A
2
Connector B (See Connector B Removal Note.)
3
Clip B
4
Bolt
5
Antenna amplifier

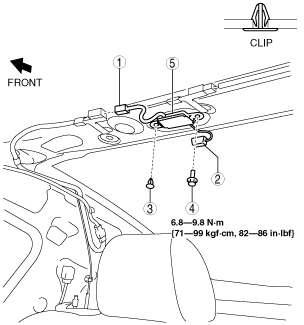

With RDS (radio date system)

am3zzw00006018

1
Connector A
2
Connector B (See Connector B Removal Note.)
3
Clip
4
Bolt
5
Antenna amplifier

7.  Install in the reverse order of removal.


Connector B Removal Note

1.  Remove the connector B in the direction of the arrow (2) shown in the figure while pressing the glass antenna terminal in the direction of the arrow (1).

am3zzw00006019
