MULTI INFORMATION DISPLAY

id092200028500


Outline

•  The following display screens have been adopted to display 2 in the multi information display.
―  Monochrome type
•  i-stop guidance display
―  Color type
•  Trip computer display
•  i-stop guidance display
•  i-stop effect display
•  ECO drive monitor
•  Intelligent drive master (i-DM) display

Function

•  The vehicle information for the display screens which have been added to display 2 in the multi information display is as follows:

Display 2 additional display information table

Monochrome type

Display information

Display screen

Function
i-stop guidance display
i-stop guidance is displayed in the LCD.
(See i-stop GUIDANCE DISPLAY.)

Color type

Display information

Display screen

Function
Trip computer display
Trip computer information is displayed in the LCD.
(See TRIP COMPUTER INFORMATION DISPLAY.)
i-stop guidance display
i-stop guidance is displayed in the LCD.
(See i-stop GUIDANCE DISPLAY.)
i-stop effect display
i-stop effect is displayed in the LCD.
(See i-stop EFFECT DISPLAY.)
ECO drive monitor display
The ECO drive monitor is displayed in the LCD.
(See ECO DRIVE MONITOR DISPLAY.)
Intelligent drive master (i-DM) display
i-DM information is displayed in the LCD.
(See INTELLIGENT DRIVE MASTER (i-DM).)


Data reset of display 2 content

Caution
•  Explain the reset items to the customer for their understanding, and then perform the data reset.

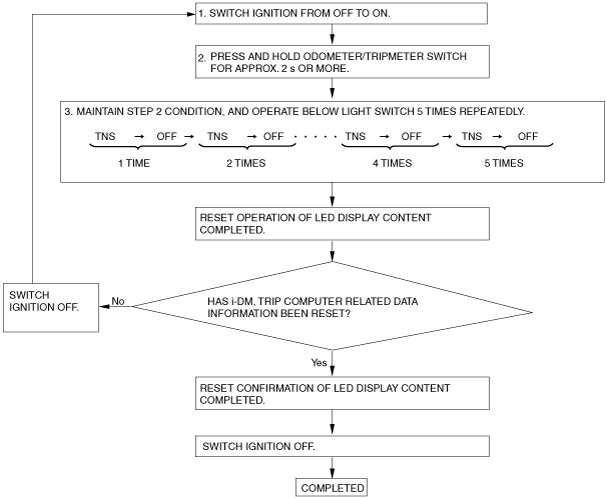

•  i-DM and trip computer-related information can be reset collectively using the following procedure.
i-DM-related information
―  Stage information
―  Averages
―  Number of stages*1
Trip computer-related information
―  Average fuel economy
―  Average vehicle speed
―  TRIP value
―  Fuel consumption history (at every reset)
*1  :Becomes the initial value setting.
am3zzn00003346

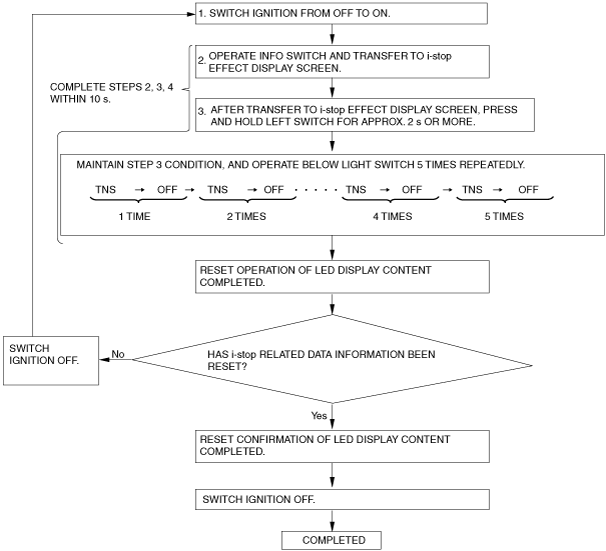

•  i-stop-related information can be reset collectively using the following procedure:
i-stop-related information
―  Current i-stop time
―  Cumulative i-stop time
―  Cumulative total effect (tree quantity)
am3zzn00003347
