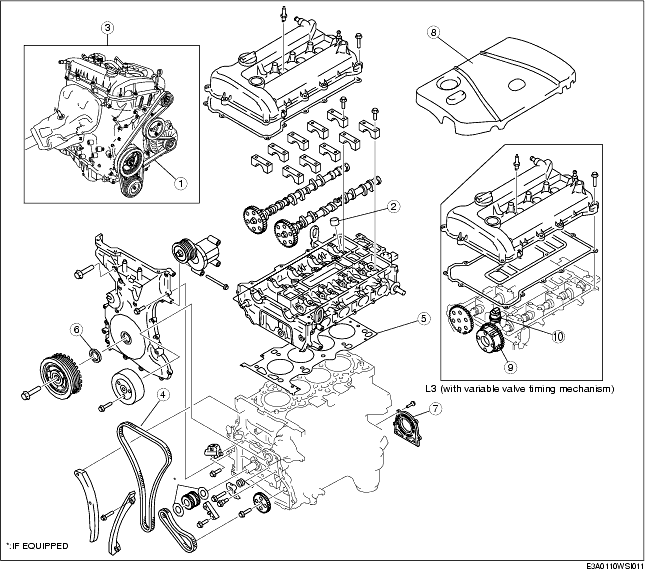

ENGINE LOCATION INDEX [LF, L3]


1	Drive belt (See DRIVE BELT INSPECTION [LF, L3].) (See DRIVE BELT REPLACEMENT [LF, L3].) (See DRIVE BELT AUTO TENSIONER INSPECTION [LF, L3].)
2	Tappet (See VALVE CLEARANCE INSPECTION [LF, L3].) (See VALVE CLEARANCE ADJUSTMENT [LF, L3].)
3	Engine (See COMPRESSION INSPECTION [LF, L3].) (See ENGINE REMOVAL/INSTALLATION [LF, L3].) (See ENGINE DISASSEMBLY/ASSEMBLY [LF, L3].)
4	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION [LF, L3].)
5	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [LF, L3].)
6	Front oil seal (See FRONT OIL SEAL REPLACEMENT [LF, L3].)
7	Rear oil seal (See REAR OIL SEAL REPLACEMENT [LF, L3].)
8	Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF, L3].)
9	Variable valve timing actuator (See VARIABLE VALVE TIMING ACTUATOR INSPECTION [L3].) (See VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [L3].)
10	Oil control valve (OCV) (See OIL CONTROL VALVE (OCV) INSPECTION [L3].) (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [L3].)
