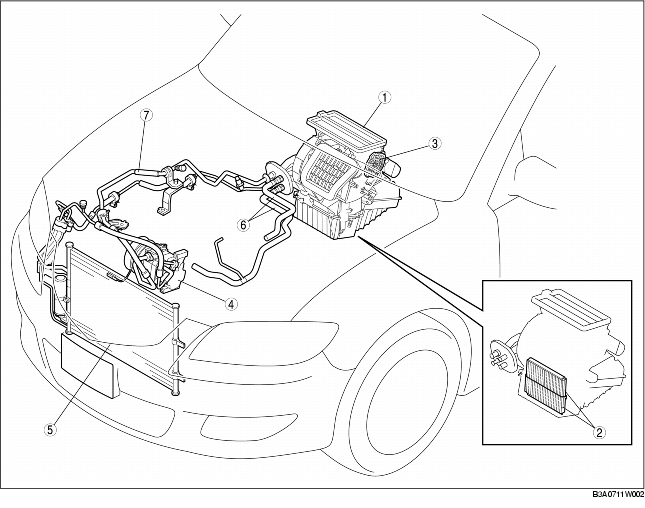

L.H.D.

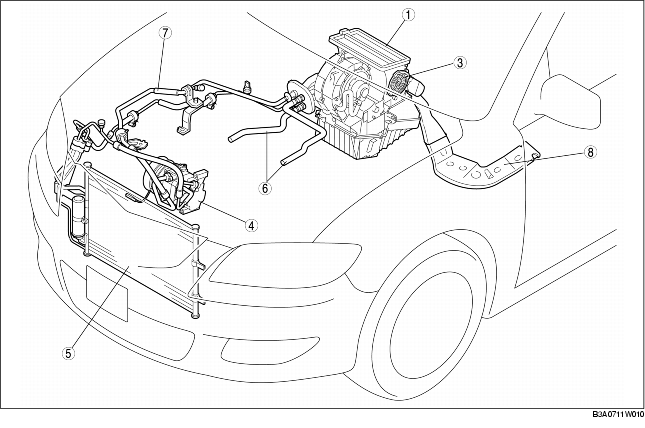

R.H.D.
.
|
1
|
A/C unit
(See EVAPORATOR INSPECTION.)
(See HEATER CORE INSPECTION.)
|
|
2
|
Air filter
(See AIR FILTER INSPECTION.)
|
|
3
|
Airflow mode main link
|
|
4
|
A/C compressor
|
|
5
|
Condenser
(See CONDENSER INSPECTION.)
|
|
6
|
Heater hose
|
|
7
|
Refrigerant line
|
|
8
|
Rear heat duct
|
