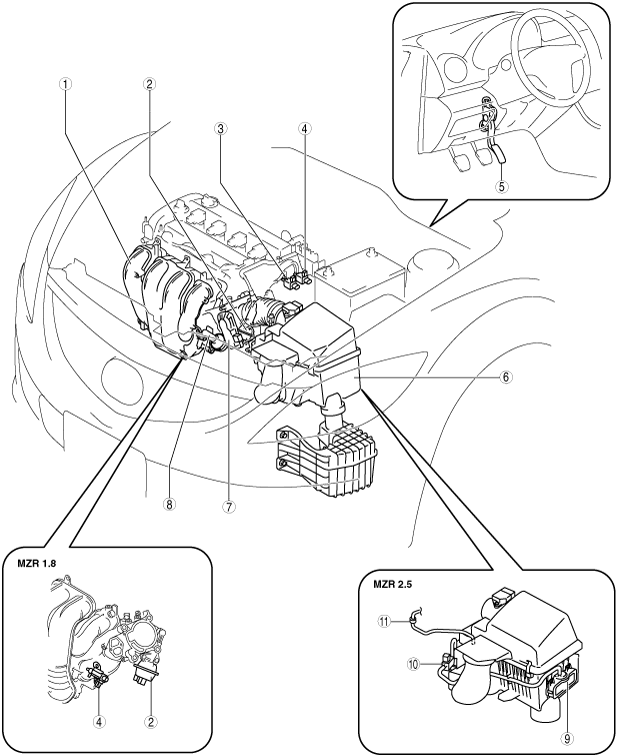

INTAKE-AIR SYSTEM LOCATION INDEX [MZR 1.8, MZR 2.0, MZR 2.5]

id0113d0800100

am6zzw00005675

1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See INTAKE MANIFOLD VACUUM INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
2	Variable tumble shutter valve actuator (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
3	Variable intake air solenoid valve (MZR 2.0, MZR 2.5) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See VARIABLE INTAKE AIR SOLENOID VALVE INSPECTION [MZR 2.0, MZR 2.5].)
4	Variable tumble solenoid valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See VARIABLE TUMBLE SOLENOID VALVE INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
5	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)
6	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See AIR CLEANER ELEMENT INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
7	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See THROTTLE BODY INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
8	Variable intake air shutter valve actuator (MZR 2.0, MZR 2.5) (See VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR INSPECTION [MZR 2.0, MZR 2.5].)
9	VAD shutter valve (MZR 2.5) (See VARIABLE AIR DUCT (VAD) SHUTTER VALVE INSPECTION [MZR 2.5].)
10	VAD solenoid valve (MZR 2.5) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See VARIABLE AIR DUCT (VAD) SOLENOID VALVE INSPECTION [MZR 2.5].)
11	VAD check valve (MZR 2.5) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See VARIABLE AIR DUCT (VAD) CHECK VALVE (ONE-WAY) INSPECTION [MZR 2.5].)
