PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR LIGHT BULB REMOVAL/INSTALLATION
id081000806800
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (2) Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
- (3) Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [A26M-R].)
- (4) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
- (5) Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

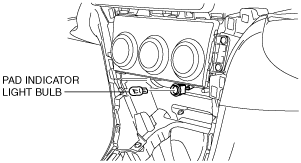

3. Remove the PAD indicator light bulb.
4. Install in the reverse order of removal.
