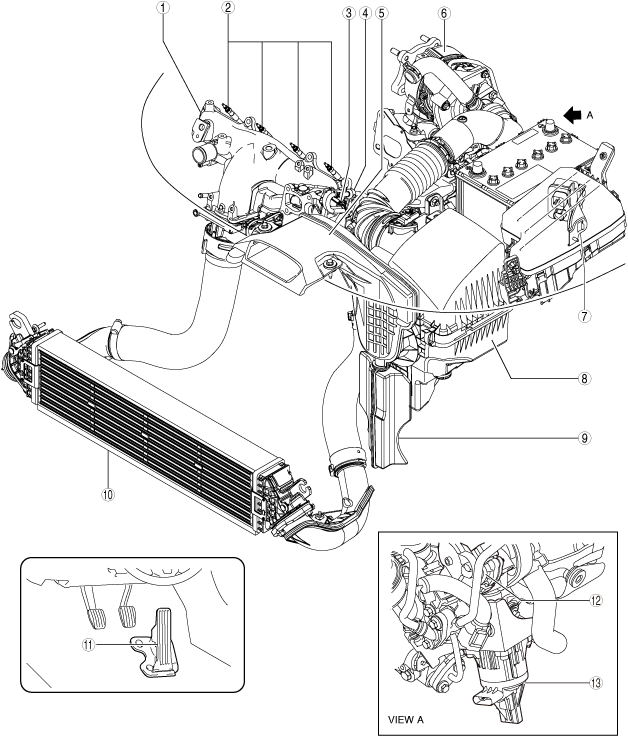

INTAKE-AIR SYSTEM LOCATION INDEX [SKYACTIV-D 2.2]


id0113z7801700

am6zzw00018573

1
Intake manifold
2
Glow plug
3
Compressor bypass solenoid valve
4
Check valve
5
Fresh-air duct
6
Turbocharger
7
Glow control module
8
Air cleaner
9
Resonance chamber
10
Charge air cooler
11
Accelerator pedal
12
Variable turbine geometry turbocharger actuator
13
Regulating valve actuator
