CONTROL SYSTEM LOCATION INDEX [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]
id0140h4804100

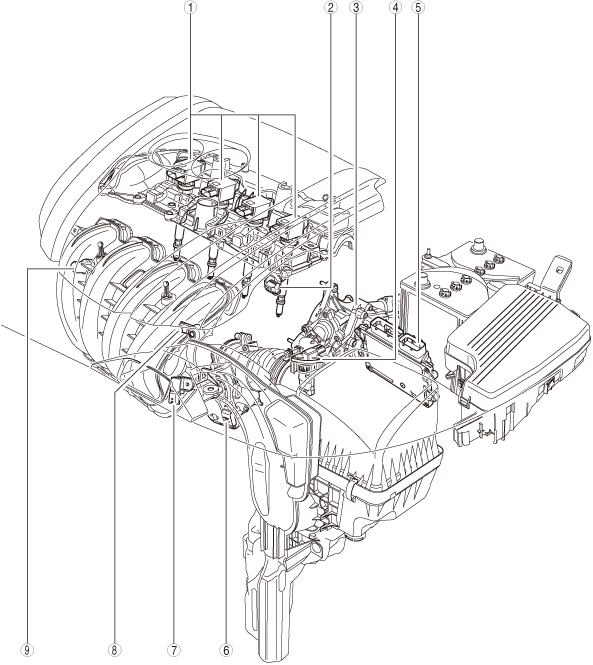

Engine Compartment
ac5uuw00009317
|
|
1
|
Ion sensor
|
|
2
|
Intake CMP sensor
|
|
3
|
Coolant control valve position sensor
|
|
4
|
MAF sensor/IAT sensor No.1
|
|
5
|
PCM (BARO sensor)
|
|
6
|
TP sensor
|
|
7
|
MAP sensor/IAT sensor No.2
|
|
8
|
KS
|
|
9
|
Fuel pressure sensor
|

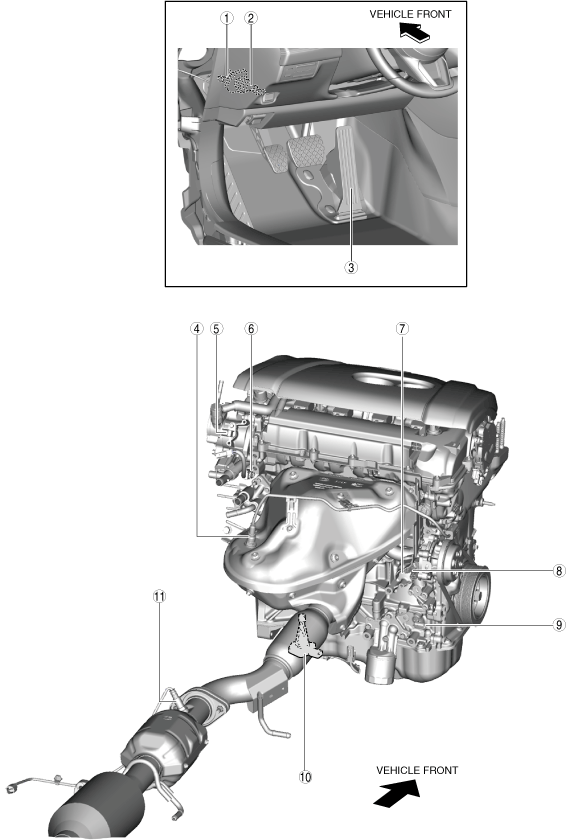

Except Engine Compartment
am6zzw00017609
|
|
1
|
Clutch stroke sensor (MTX)
|
|
2
|
CPP switch (MTX)
|
|
3
|
APP sensor
|
|
4
|
A/F sensor
|
|
5
|
Exhaust CMP sensor
|
|
6
|
ECT sensor No.2
|
|
7
|
Engine oil temperature sensor/Engine oil pressure sensor
|
|
8
|
ECT sensor No.1
|
|
9
|
CKP sensor
|
|
10
|
Engine oil level sensor (With engine oil level sensor)
|
|
11
|
HO2S
|
