FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION

id091400510700

Fuel-filler Lid Opener

4SD

1.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (LH) (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

2.  Pull back the trunk side trim (LH) to a position which allows for the removal of the fuel-filler lid opener. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3.  Open the fuel-filler lid.

4.  Remove the nut.

ac5wzw00000311

Note

•  Perform the following procedure to secure an operation space.

1.  Remove the bolts.

am6zzw00015647

2.  Remove the screw.

3.  Remove the bracket from the vehicle body in the direction of the arrow shown in the figure.

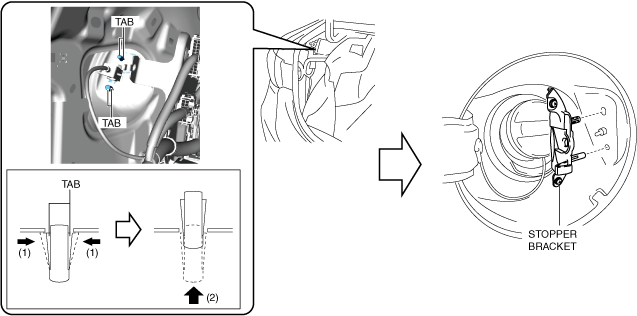

5.  While pressing the tabs of the stopper bracket in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach it from the body.

am6zzw00015648

6.  Detach all the stopper bracket tabs from the body and remove the stopper bracket.

7.  Remove the fuel-filler lid opener in the direction of the arrow.

am6zzw00015649

8.  Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener.

ac5wzw00000315

9.  Install in the reverse order of removal.

WGN

1.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

2.  Pull back the trunk side upper trim (LH) to a position which allows for the removal of the fuel-filler lid opener. (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Pull back the trunk side trim (LH) to a position which allows for the removal of the fuel-filler lid opener. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Open the fuel-filler lid.

5.  Remove the nut.

ac5wzw00000311

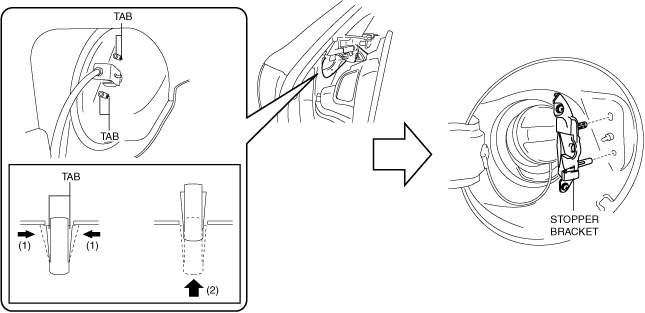

6.  While pressing the tabs of the stopper bracket in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach it from the body.

am6zzw00015650

7.  Detach all the stopper bracket tabs from the body and remove the stopper bracket.

8.  Remove the fuel-filler lid opener in the direction of the arrow.

am6zzw00008505

9.  Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener.

ac5wzw00000315

10.  Install in the reverse order of removal.

Fuel-filler Lid Opener Lever

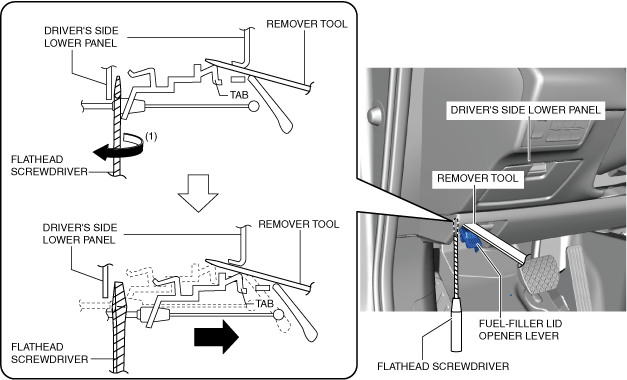

1.  While pulling the fuel-filler lid opener lever, insert a remover tool into the position shown in the figure.

am6zzw00015651

2.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure and rotate it in the direction of arrow (1) to detach the fuel-filler lid opener lever from the driver’s side lower panel.

Caution

•  Be careful not to damage the fuel-filler lid opener lever with the flathead screwdriver.

3.  Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener lever.

am6zzw00015652

4.  Install in the reverse order of removal.
