BRAKE LIGHT UNIT REMOVAL/INSTALLATION

id091800400000

4SD

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

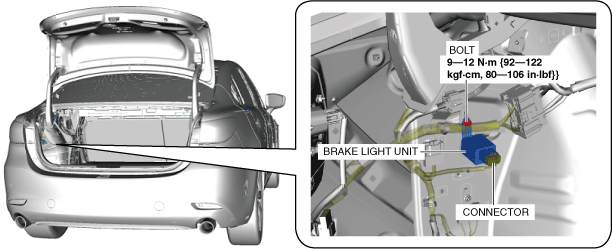

am6zzw00016955

5.  Remove the bolt.

6.  Remove the brake light unit.

7.  Install in the reverse order of removal.

WGN

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side upper trim (LH) and trunk side trim (LH). (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

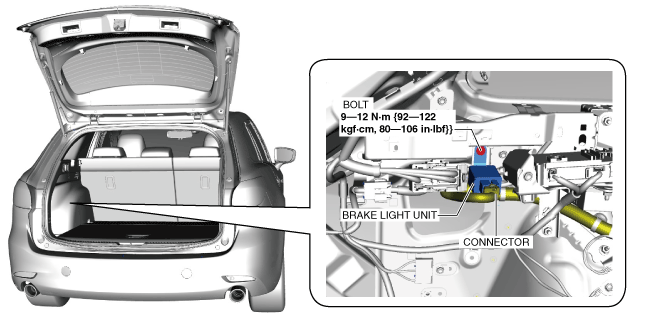

am6zzw00016956

5.  Remove the bolt.

6.  Remove the brake light unit.

7.  Install in the reverse order of removal.
