GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION

id092000801500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Meter hood cover (See METER HOOD COVER REMOVAL/INSTALLATION.)

(2)  Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION.)

(3)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(5)  Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

(6)  Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

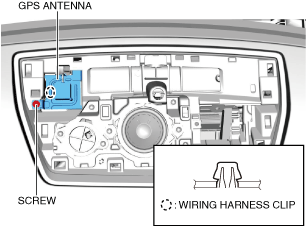

3.  Remove the screw.

am6xuw00011034

4.  Pull out the wiring harness clip.

5.  Remove the GPS antenna.

6.  Install in the reverse order of removal.
