AudioPilot^® MICROPHONE REMOVAL/INSTALLATION

id092000866400

Note

•  AudioPilot^® is a registered trademark of Bose^® Corporation.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(4)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(5)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

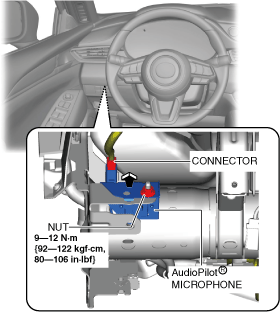

3.  Disconnect the connector.

am6xuw00011052

4.  Remove the nut.

5.  Remove the AudioPilot^® microphone.

6.  Install in the reverse order of removal.
