FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION

id092200030400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Meter hood cover (See METER HOOD REMOVAL/INSTALLATION.)

(2)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION.)

(5)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(6)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am6zzw00016348

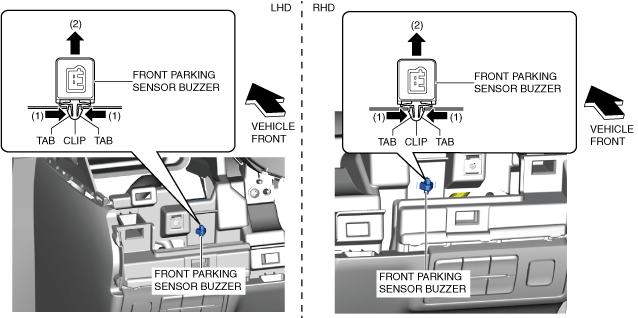

4.  While pressing the front parking sensor buzzer tabs in the direction of arrows (1) shown in the figure, pull the front parking sensor buzzer in the direction of arrow (2) to detach the front parking sensor buzzer tabs from the driver-side lower panel.

am6zzw00016349

5.  Remove the front parking sensor buzzer.

6.  Install in the reverse order of removal.
