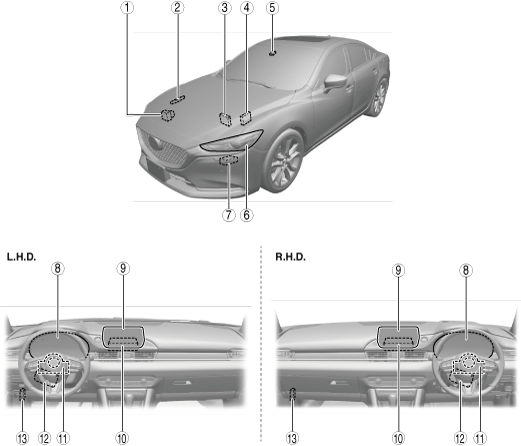

ADAPTIVE LED HEADLIGHTS SYSTEM LOCATION INDEX

id152000000600

am6zzw00016295

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION.) (See DSC HU/CM INSPECTION.) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE.)
2	PCM (SKYACTIV-G 2.5T,SKYACTIV-D 2.2) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See PCM INSPECTION [SKYACTIV-G 2.5T].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 2.5T].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 2.5T].) (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See PCM INSPECTION [SKYACTIV-D 2.2].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-D 2.2].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-D 2.2].)
3	PCM (SKYACTIV-G 2.0,SKYACTIV-G 2.5) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See PCM INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].) (See PCM INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
4	FBCM (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION.) (See FRONT BODY CONTROL MODULE (FBCM) INSPECTION.) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING READ/WRITE FUNCTION).) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING AS-BUILT DATA).)
5	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.) (See FORWARD SENSING CAMERA (FSC) AIMING.) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION).) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA).) (See FORWARD SENSING CAMERA (FSC) SYSTEM OPERATION RECORD.)
6	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY.) (See HEADLIGHT BULB REMOVAL/INSTALLATION.) (See HEADLIGHT AIMING.)
7	TCM (See CONTROL VALVE BODY REMOVAL/INSTALLATION [FW6A-EL].)
8	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE.) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE.)
9	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION.) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
10	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY.)
11	Start stop unit (See START STOP UNIT REMOVAL/INSTALLATION.) (See START STOP UNIT INSPECTION.) (See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION).) (See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA).)
12	EPS control module (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.) (See EPS CONTROL MODULE INSPECTION.)
13	Adaptive LED headlights control module (See ADAPTIVE LED HEADLIGHTS CONTROL MODULE REMOVAL/INSTALLATION.) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)
