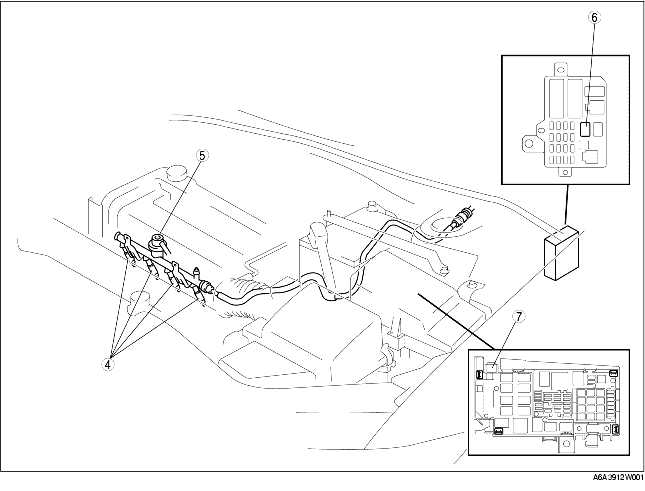

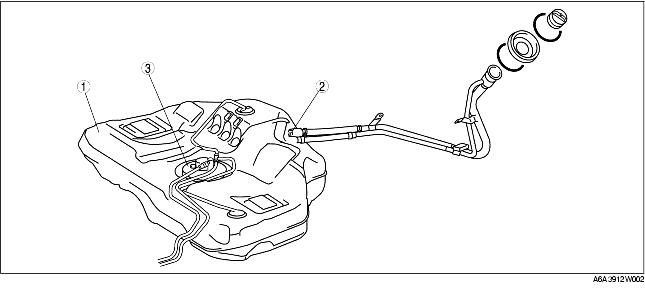

FUEL SYSTEM LOCATION INDEX [LF, L3]


1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [LF, L3]) (See FUEL TANK INSPECTION [LF, L3])
2	Nonreturn valve (See NON-RETURN VALVE INSPECTION [LF, L3])
3	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [LF, L3]) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [LF, L3]) (See FUEL PUMP UNIT INSPECTION [LF, L3])
4	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [LF, L3]) (See FUEL INJECTOR INSPECTION [LF, L3])
5	Pulsation damper (See PULSATION DAMPER REMOVAL/INSTALLATION [LF, L3]) (See PULSATION DAMPER INSPECTION [LF, L3])
6	Fuel pump relay (See RELAY INSPECTION)
7	Check connector
