1. Remove the battery, battery tray and battery bracket.
2. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L3].)
3. Remove the dashboard complete.
(See DASHBOARD REMOVAL/INSTALLATION.)
4. Remove the SAS control module.
(See SAS UNIT REMOVAL/INSTALLATION.)
5. Remove the A/C unit. (See A/C UNIT REMOVAL/INSTALLATION.)
6. Remove the rear heat duct. (See REAR HEAT DUCT REMOVAL/INSTALLATION.)

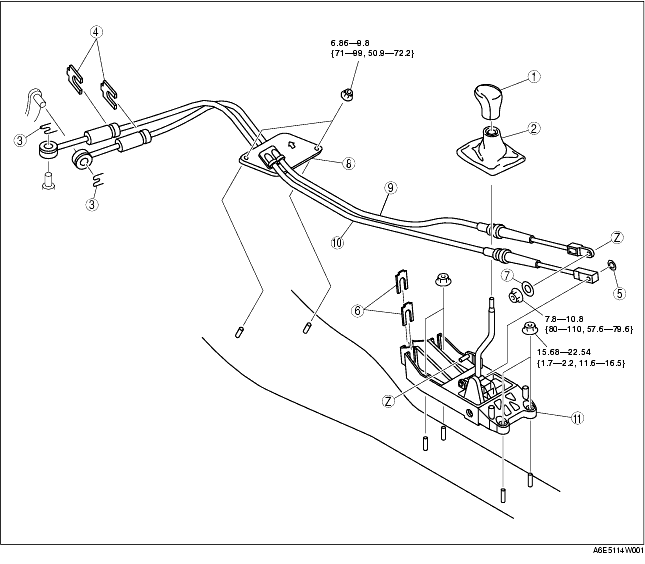

7. Remove in the order indicated in the table.
8. Install in the reverse order of removal.
9. Install the air cleaner component.
10. After installation, verify that the shift lever can be shifted smoothly into each position.
|
1
|
Shift lever knob
|
|
2
|
Boot panel
|
|
3
|
Clip
|
|
4
|
Clip
|
|
5
|
Clip
|
|
6
|
Clip
|
|
7
|
Plain Washer
|
|
8
|
Seal plate
|
|
9
|
Main shift cable
|
|
10
|
Main select cable
|
|
11
|
Sift lever assembly
|
1. Remove the center console.
2. Make sure that the shift lever (transaxle side) is in neutral.

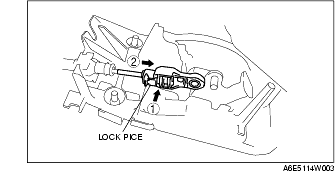

3. Unlock the lock piece of the select cable (shift lever side) in the order shown in the figure.
4. Shift the sift lever to neutral.

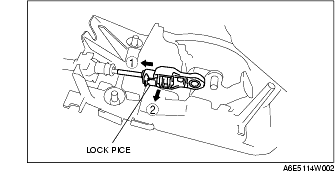

5. Lock the lock piece of the selector cable (shift cable side) in the order shown in the figure.
6. Install the center console.
7. Shift the shift lever from neutral to other position, and make sure that there are no other components in that area to interfere with the lever.
