ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION

id092000812300

4SD

Removal

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2. Remove the following parts:

(1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(6) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(7) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(8) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(9) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(10) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(12) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(13) Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(14) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(15) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(16) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(17) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].)

(18) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(19) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(20) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(21) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(22) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(23) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(24) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3. Peel off the tape shown in the figure and remove antenna feeder No.2.

Without sunroof

am6zzw00010364

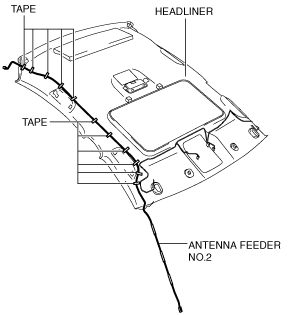

With sunroof

am6zzw00010365

Installation

1. Affix tape shown in the figure and install antenna feeder No.2.

Without sunroof

am6zzw00010366

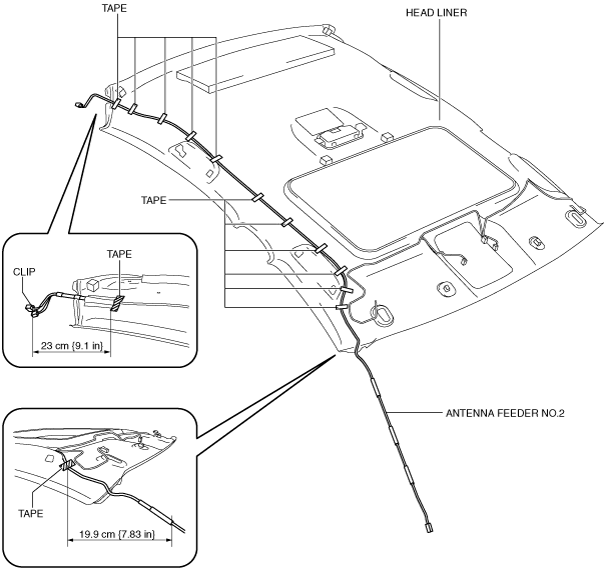

With sunroof

am6zzw00010367

2. Install the following parts:

(1) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(6) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(7) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(8) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(9) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(10) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(12) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(13) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(14) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(15) Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(16) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(17) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(18) Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(19) Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].)

(20) Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(21) Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(22) Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(23) Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(24) Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

3. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

WGN

Removal

2. Remove the following parts:

(1) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)

(2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(4) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(5) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(6) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(7) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(8) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(9) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(10) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(12) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(13) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(14) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(15) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(16) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(17) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(18) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

3. Peel off the tape shown in the figure and remove antenna feeder No.2.

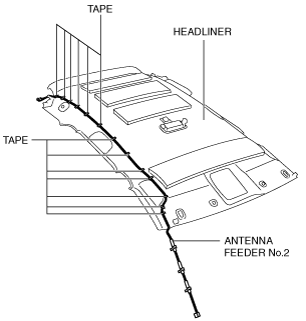

Without sunroof

am6zzw00010368

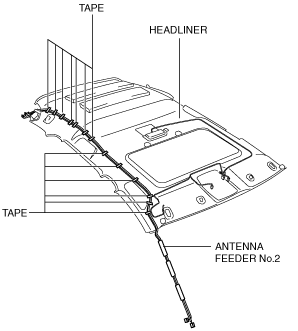

With sunroof

am6zzw00010369

Installation

1. Affix tape shown in the figure and install antenna feeder No.2.

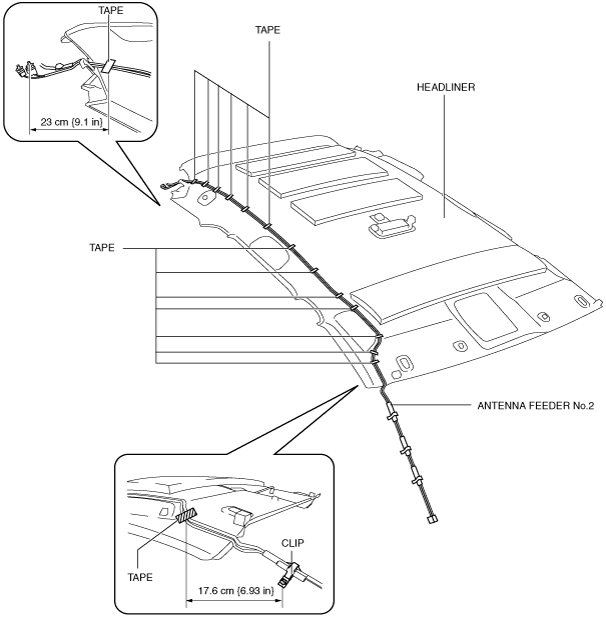

Without sunroof

am6zzw00010370

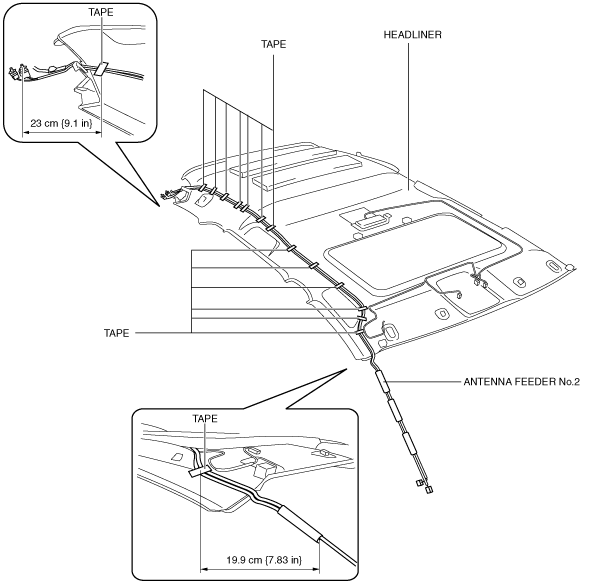

With sunroof

am6zzw00010371

2. Install the following parts:

(1) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

(2) D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(3) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(4) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(5) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(6) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(7) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(8) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(9) Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(10) Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(11) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(12) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(13) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(14) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(15) Front map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(16) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(17) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(18) Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION.)
