LIQUID CRYSTAL DISPLAY (LCD)

id092200103500

Outline

Function/Construction

LCD indication table

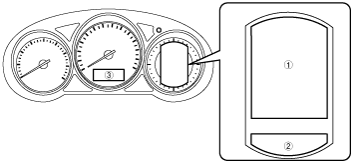

Type A

•  The information and display positions indicated in the LCD display are as follows: Refer to the referenced section for details of the displayed information.

ac5wzn00002053

Display area	Display content	Reference
1	Instantaneous fuel economy, average fuel economy, remaining distance to empty, average vehicle speed, vehicle speed alarm	(See TRIP COMPUTER INFORMATION SYSTEM.)
	i-stop guidance display, i-stop effect display	(See i-stop GUIDANCE DISPLAY.) (See i-stop EFFECT DISPLAY.)
	Personalization settings display	(See INSTRUMENTATION/DRIVER INFO. PERSONALIZATION.)
	Message display, warning display, and system operation display	(See Message display, warning display, and system operation display.)
	Maintenance monitor	(See MAINTENANCE MONITOR.)
2	Amount of remaining fuel	(See FUEL GAUGE.) (See FUEL TANK LEVEL WARNING DISPLAY.)
3	Ambient temperature	(See AMBIENT TEMPERATURE DISPLAY.)
	Total traveled distance/traveled distance over a specific interval	(See ODOMETER/TRIPMETER.)

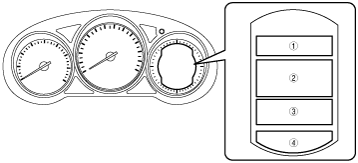

Type B

•  The information and display positions indicated in the LCD display are as follows: Refer to the referenced section for details of the displayed information.

ac5jjn00000160

Display area	Display content	Reference
1	Ambient temperature	(See AMBIENT TEMPERATURE DISPLAY.)
2	Instantaneous fuel economy, average fuel economy, remaining distance to empty, average vehicle speed, vehicle speed alarm	(See TRIP COMPUTER INFORMATION SYSTEM.)
3	Total traveled distance/traveled distance over a specific interval	(See ODOMETER/TRIPMETER.)
4	Amount of remaining fuel	(See FUEL GAUGE.)

Message display, warning display, and system operation display

•  The instrument cluster displays the following messages:

•  If the instrument cluster receives message display requests from multiple units, the messages are displayed at certain intervals.

LCD	Master warning light	Related unit	Reference/function
	—	PCM	(See CHECK ENGINE LIGHT [SKYACTIV-D 2.2].) (See CHECK ENGINE LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
	On	PCM	(See ENGINE OIL WARNING LIGHT.)
	—	Instrument cluster	(See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED).)
	—
	On	PCM	(See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [SKYACTIV-D 2.2].) (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
	On	PCM	(See DIESEL PARTICULATE FILTER INDICATOR LIGHT [SKYACTIV-D 2.2].)
	—
	—	PCM	(See WRENCH INDICATOR LIGHT [SKYACTIV-D 2.2].)
	On	PCM	(See FUEL INJECTION AMOUNT CONTROL [SKYACTIV-D 2.2].) (See DRIVE-BY-WIRE CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
	On	PCM	(See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
	On	PCM	(See GENERATOR CONTROL [SKYACTIV-D 2.2].) (See GENERATOR CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
	On	PCM (i-ELOOP)	(See i-ELOOP [i-ELOOP].)
	—
	—
	—
	—	PCM (adjustable speed limiter)	(See ADJUSTABLE SPEED LIMITER [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ADJUSTABLE SPEED LIMITER [SKYACTIV-D 2.2].)
	—
	On	EPS CM	(See POWER STEERING MALFUNCTION INDICATOR LIGHT.)
	—	DSC HU/CM (TPMS)	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
	—
	—
	—	Front body control module (FBCM)	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
	—	DSC HU/CM (Brake)
	On	Vehicle control module (V/C-Module) (SBS (Smart brake support))	(See SMART BRAKE SUPPORT (SBS).)
	—
	—
	—
	—
	On	Laser sensor	(See SMART CITY BRAKE SUPPORT (SCBS).)
	—
	—
	On	TCM	(See AUTOMATIC TRANSAXLE WARNING LIGHT [FW6A-EL].) (See AUTOMATIC TRANSAXLE WARNING LIGHT [GW6A-EL].)
	—	Vehicle control module (V/C-Module) (MRCC)	(See MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM [MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM].)
	—
	—
	—
	—
	—
	—
	On	Start stop unit (Keyless entry system/advanced keyless entry system)	(See KEYLESS ENTRY SYSTEM.) (See ADVANCED KEYLESS ENTRY SYSTEM.)
	—
	—
	—
	—	Start stop unit (Push button start system)	(See PUSH BUTTON START SYSTEM [KEYLESS ENTRY SYSTEM].) (See PUSH BUTTON START SYSTEM [ADVANCED KEYLESS ENTRY SYSTEM].)
	—
	—
	—
	—
	—
	—	Forward sensing camera (FSC) (High beam control (HBC) system)	(See HIGH BEAM CONTROL (HBC) SYSTEM.)
	—
	—
	—
	—	Front body control module (FBCM) (Washer system)	(See WASHER FLUID-LEVEL SENSOR.)
	—	Forward sensing camera (FSC) (Lane departure warning system (LDWS))	(See LANE DEPARTURE WARNING SYSTEM (LDWS).)
	—
	—
	—
	—
	—
	On	Vehicle control module (V/C-Module) (DRSS (Distance recognition support system))	(See DISTANCE RECOGNITION SUPPORT SYSTEM (DRSS).)
	—
	—
	—	Instrument cluster	(See LIGHTS-ON REMINDER WARNING ALARM.)
	—	Instrument cluster	(See PARKING BRAKE WARNING DISPLAY.)
	—	Instrument cluster	(See LOW FUEL WARNING LIGHT.)
	—	Instrument cluster	(See AMBIENT TEMPERATURE WARNING ALARM.)
	—	Instrument cluster	(See DOOR-AJAR WARNING LIGHT.)

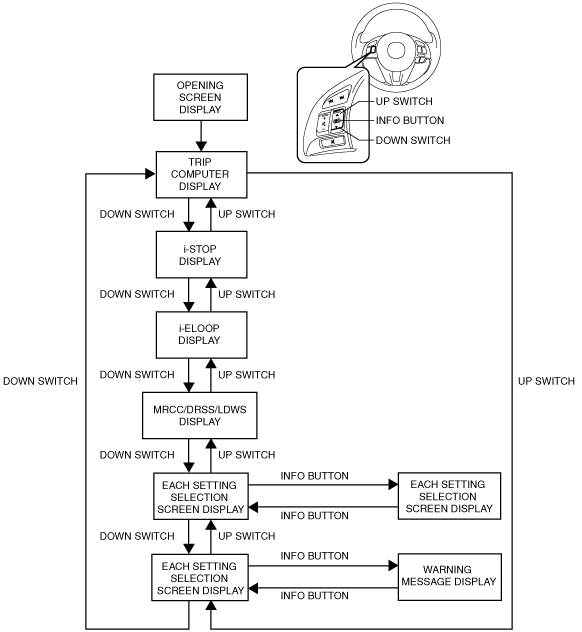

LCD display switch

•  The instrument cluster switches the LCD display content as follows based on the steering switch operation signal from the start stop unit.

Type A instrument cluster

―  Display is changed as follows:

am6zzn00002117

Type B instrument cluster

―  Trip computer display is switched. Refer to TRIP COMPUTER INFORMATION SYSTEM for details.

LCD content data reset (TYPE A)

Caution

•  The reset data cannot be recovered. When resetting data, explain the reset items to the customer and reset data after obtaining their consensus.

•  The following information displayed on the LCD can be reset all at once. Refer to the Workshop Manual for the detailed resetting procedure.

i-stop-related information

―  i-stop total time

―  i-stop time

Trip computer-related information

―  Average fuel economy

―  Average vehicle speed

―  TRIP value
