FRONT OIL SEAL REPLACEMENT [L8, LF, L5]

id0110a6800800

1.  Disconnect the negative battery cable.

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L8, LF, L5].)

3.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [L8, LF, L5].)

4.  Remove the spark plugs. (See SPARK PLUG REMOVAL/INSTALLATION [L8, LF, L5].)

5.  Remove the ventilation hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L8, LF, L5].)

6.  Disconnect the camshaft position (CMP) sensor connector.

7.  Disconnect the oil control valve (OCV) connector. (With variable valve timing mechanism.)

8.  Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [L8, LF, L5].)

9.  Remove the front wheel and tire (RH). (See GENERAL PROCEDURES (SUSPENSION).)

10.  Set the front mudguard (RH) out of the way. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

11.  Remove the splash shield (RH).

12.  Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

13.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [L8, LF, L5].)

14.  Loosen the crankshaft position (CKP) sensor installation bolts. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [L8, LF, L5].)

15.  Disconnect the drive shaft (RH) from joint shaft, set the drive shaft (RH) out of the way. (ATX) (See DRIVE SHAFT REMOVAL/INSTALLATION.)

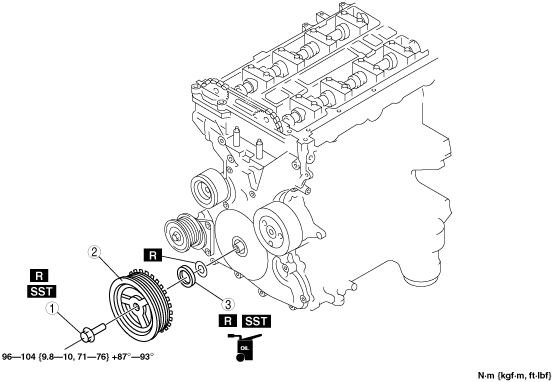

16.  Remove in the order indicated in the table.

17.  Install in the reverse order of removal.

am6zzw00001420

1
Crankshaft pulley lock bolt
(See Crankshaft Pulley Lock Bolt Removal Note.)
(See Crankshaft Pulley Lock Bolt Installation Note.)
2
Crankshaft pulley
3
Front oil seal
(See Front Oil Seal Removal Note.)
(See Front Oil Seal Installation Note.)


Crankshaft Pulley Lock Bolt Removal Note

1.  Remove the cylinder block lower blind plug.

2.  Install the SST.

am6zzw00001147

3.  Turn the crankshaft clockwise until the crankshaft is in the No.1 cylinder TDC position (until the balance weight is attached to the SST).

4.  Hold the crankshaft pulley using the SSTs.

am6zzw00001148


Front Oil Seal Removal Note

1.  Cut the oil seal lip using a utility knife.

2.  Remove the oil seal using a screwdriver wrapped with a rag.

am3zzw00002460


Front Oil Seal Installation Note

1.  Apply clean engine oil to the oil seal lip.

2.  Push the oil seal slightly in by hand.

3.  Tap the oil seal in evenly using the SST and a hammer.

am3zzw00002461
am3zzw00002462

Front oil seal press-in amount
0—0.5 mm {0—0.019 in}


Crankshaft Pulley Lock Bolt Installation Note

1.  Install the SST on the camshaft as shown in the figure.

am6zzw00002678

2.  Verify that No.1 cylinder is at TDC of the compression stroke. (Position counterweight contacts SST.)

3.  To position the crankshaft pulley, temporarily tighten it and, using a suitable bolt (M6 X 1.0), fix the crankshaft pulley to the engine front cover.

am6zzw00001573

4.  Hold the crankshaft pulley using the SSTs.

am6zzw00001148

5.  Tighten the crankshaft pulley lock bolt in the order shown in the following two steps using the SST (49 D032 316).

Tightening torque
1.  96—104 N·m {9.8—10 kgf·m, 71—76 ft·lbf}
2.  87°—93°

6.  Remove the M6 x 1.0 bolt.

7.  Remove the SST from the camshaft.

8.  Remove the SST from the cylinder block lower blind plug hole.

9.  Rotate the crankshaft clockwise 2 turns until the TDC position.

•  If not aligned, loosen the crankshaft pulley lock bolt and repeat from Step 1.

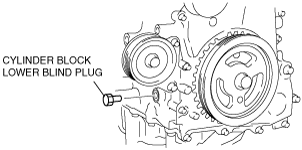

10.  Install the cylinder block lower blind plug.

am6zzw00001150

Tightening torque
18—22 N·m {1.9—2.2 kgf·m, 14—16 ft·lbf}
